NEBULA 4526-470KV F3C Motor MK50001
2021-06-24
ViewCount :

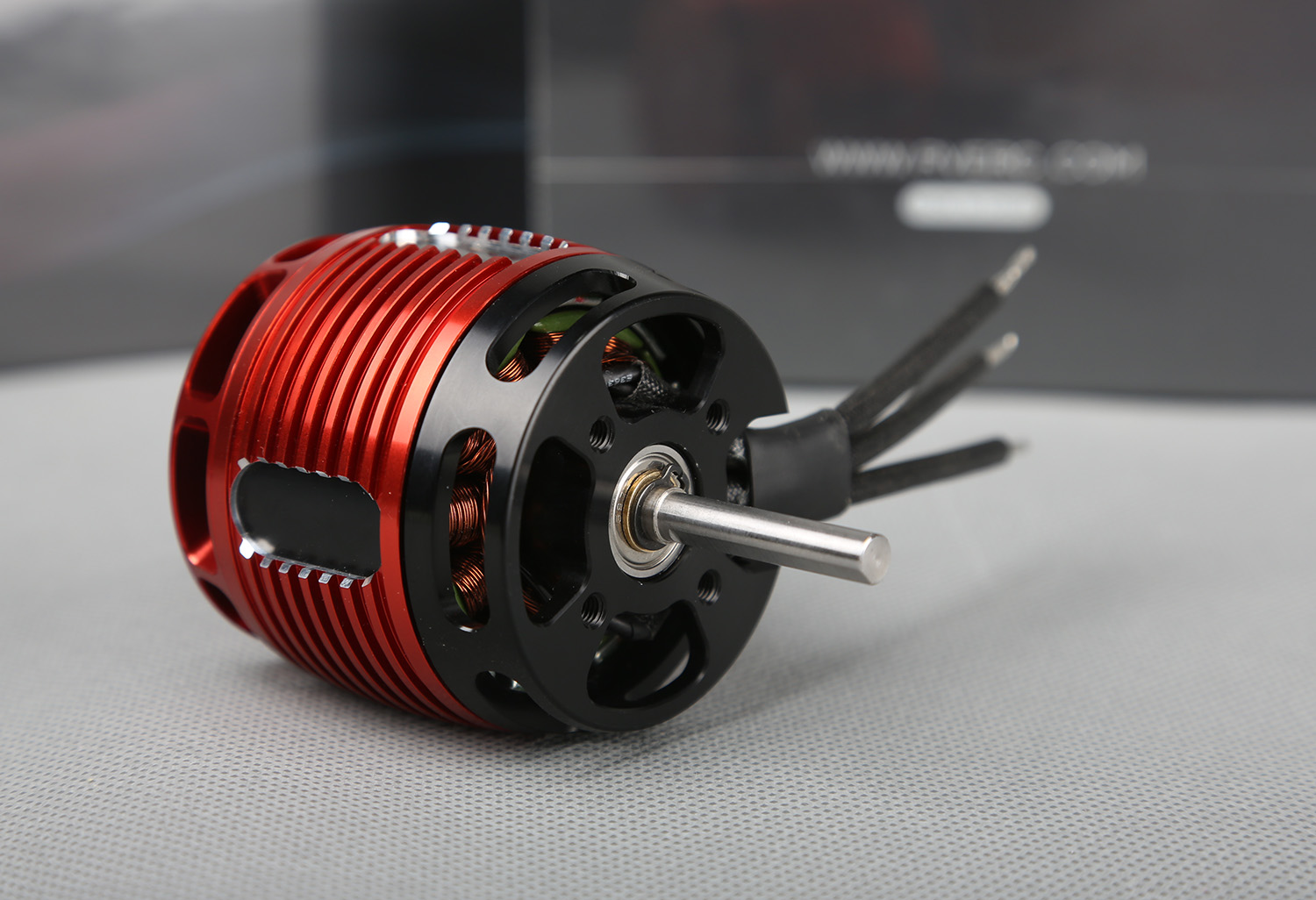

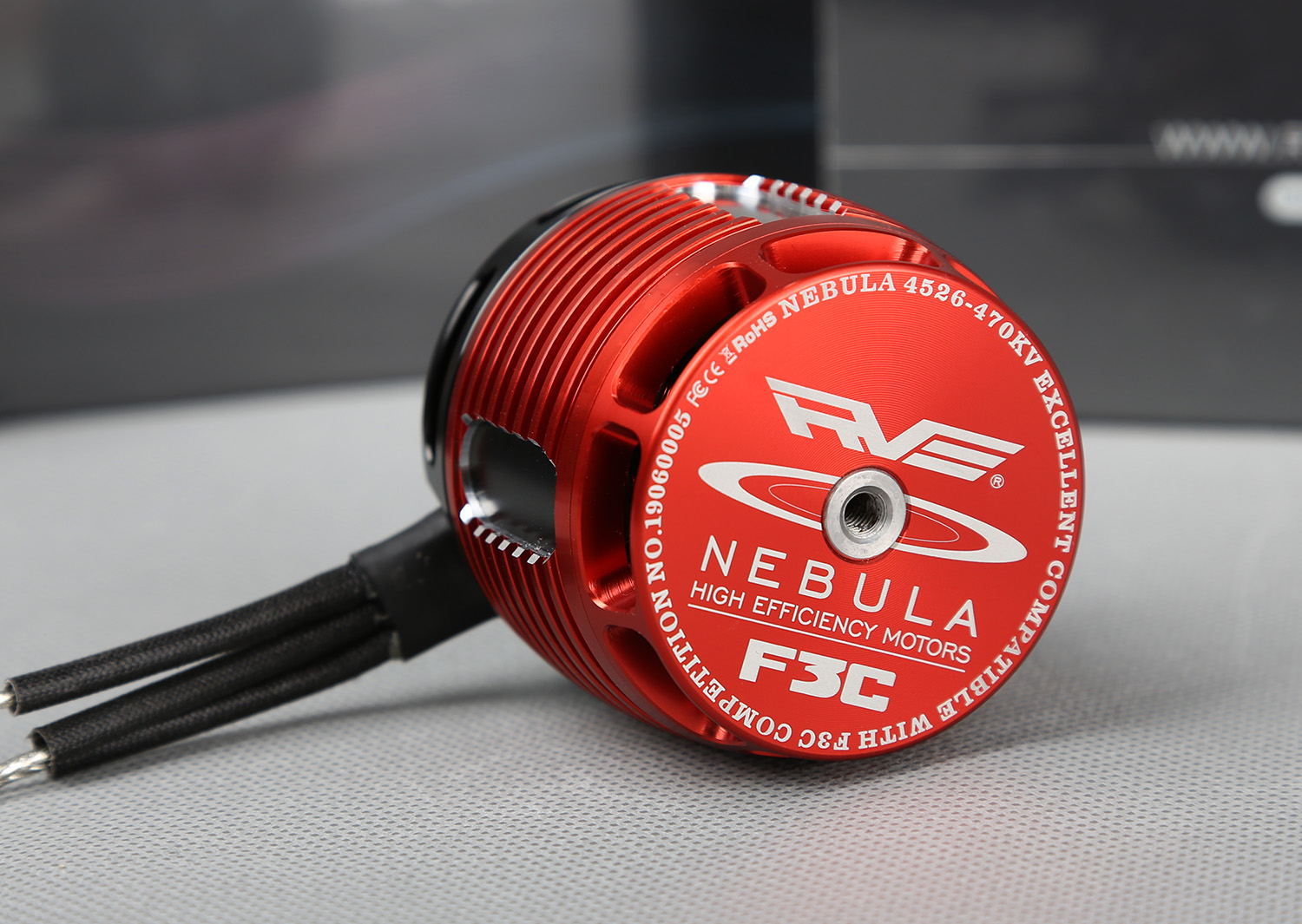

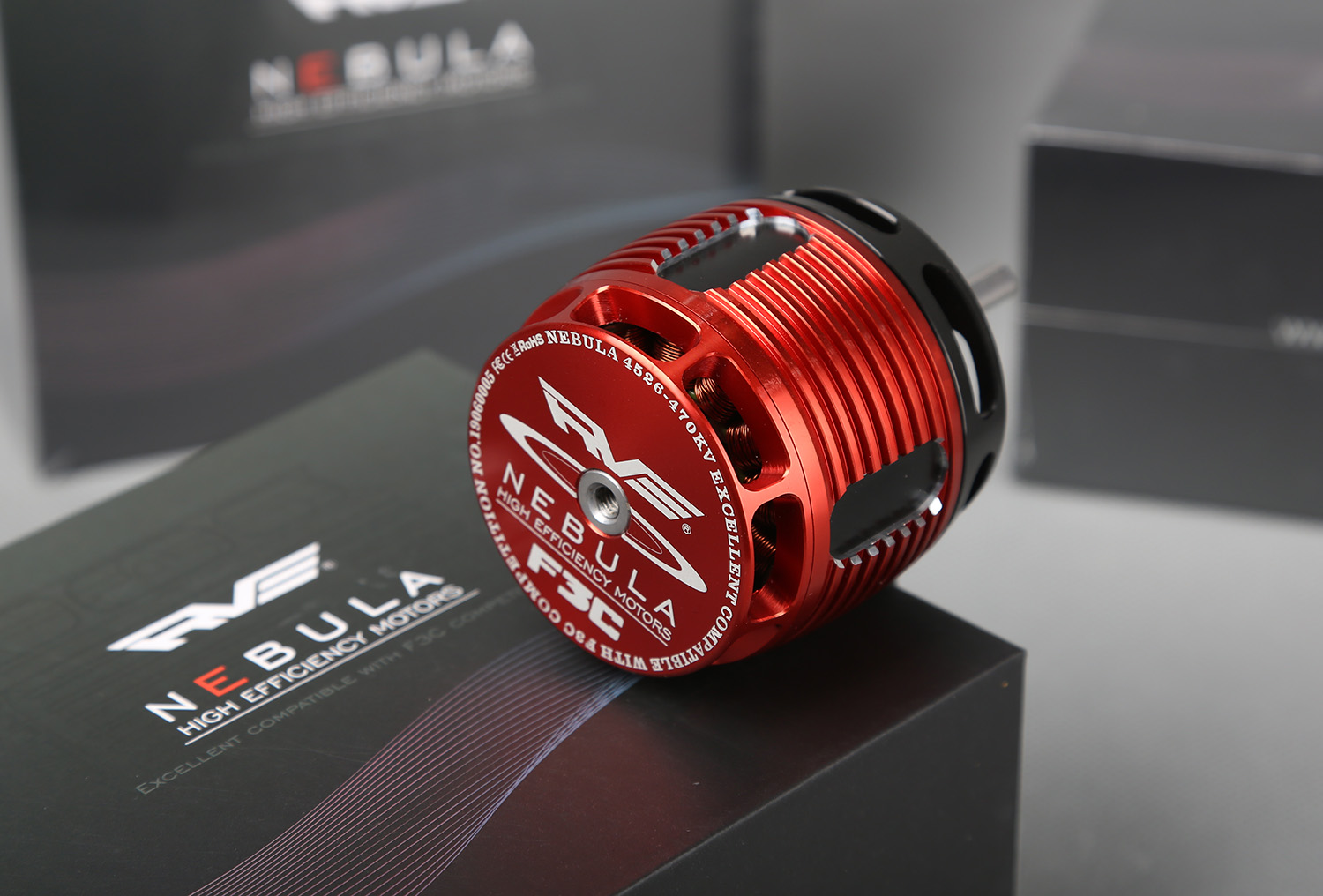

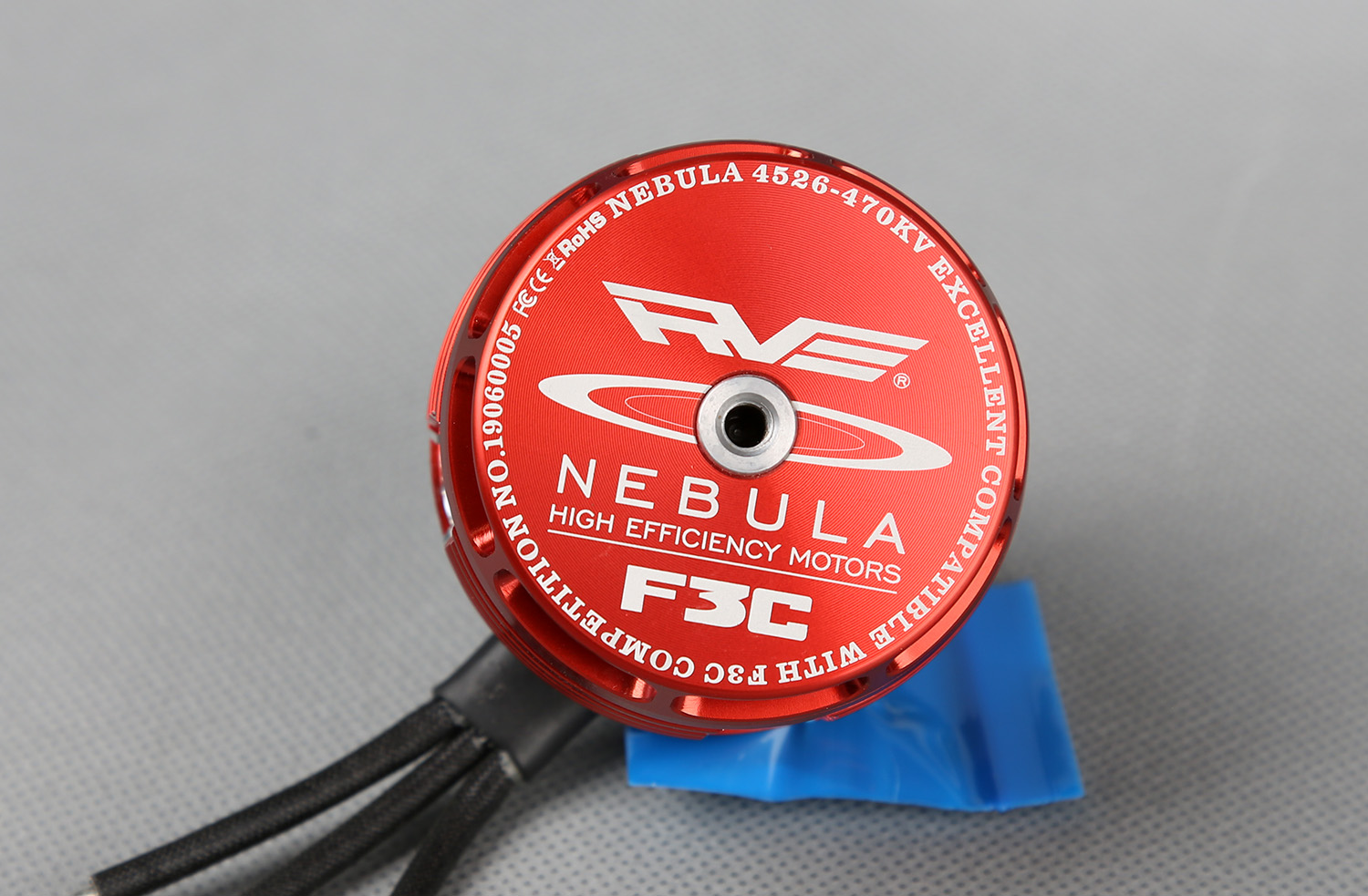

RVE NEBULA 4526-F3C
The world's first helicopter external rotor motor with aluminium radiator shell.
Optimize the design of the internal air duct of the motor, and have efficient heat dissipation capability!
Optimize the output curve and have a higher energy efficiency ratio.
The rotational speed is more stable and the output of high torque is higher.
Ultra-low temperature
-------------------------------------------------------------------------
Size / Model:4526
Motor kV :470kV
Stator Height:45mm
Stator Width:26mm
Motor Configuration:12N10P
Wire Thickness:0.38mm
Continous Current:100A
Continous Power:5000W
Maximum Current:190A(2 seconds)
Maximum Power:9500W(2 seconds)
Internal Resistance (mOhm):24mOhm
Shaft Diameter:6mm
Motor Length:57.6mm
Motor Diameter:61.6mm
Motor Weight:465g
--------------------------------------------------------------------------
