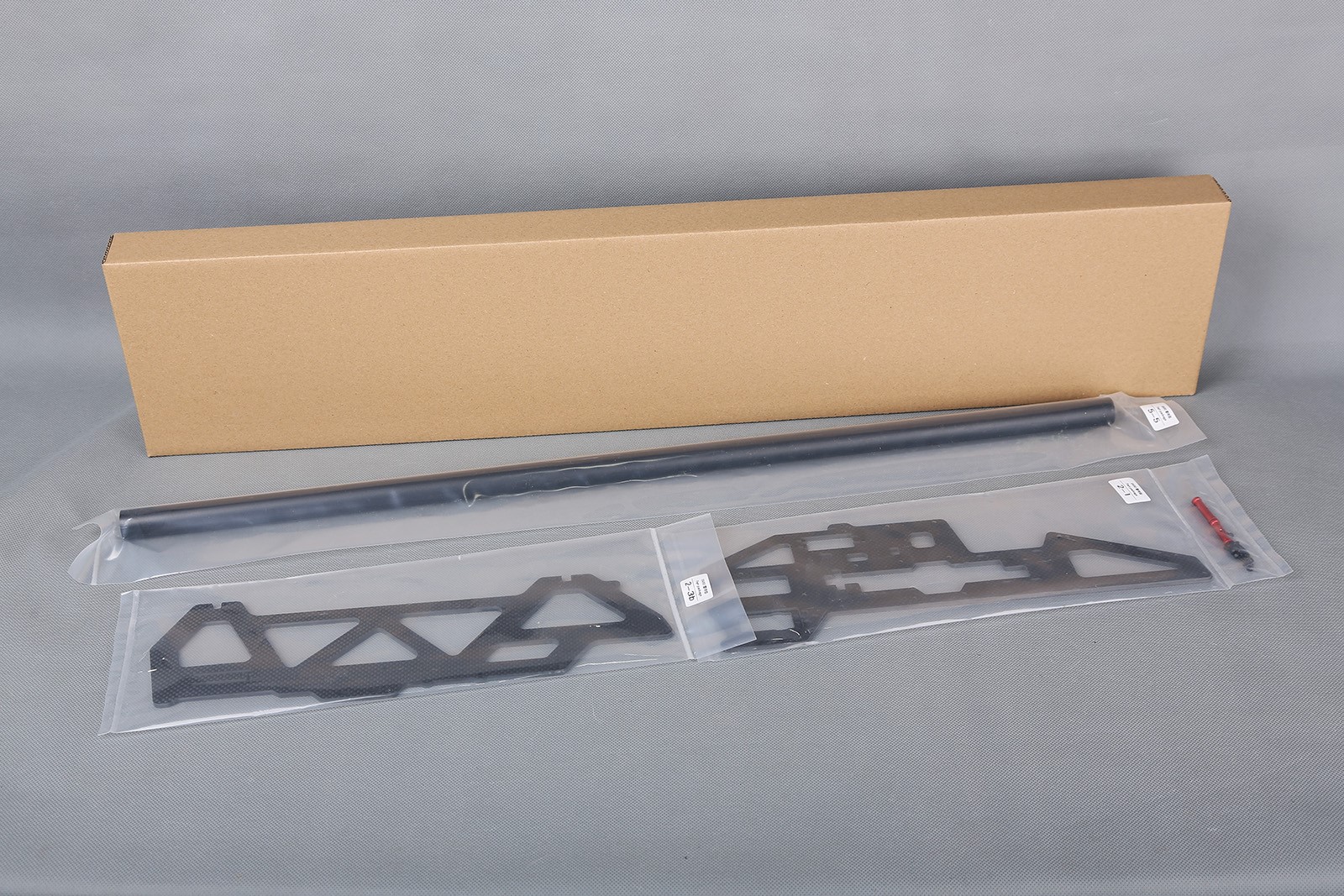

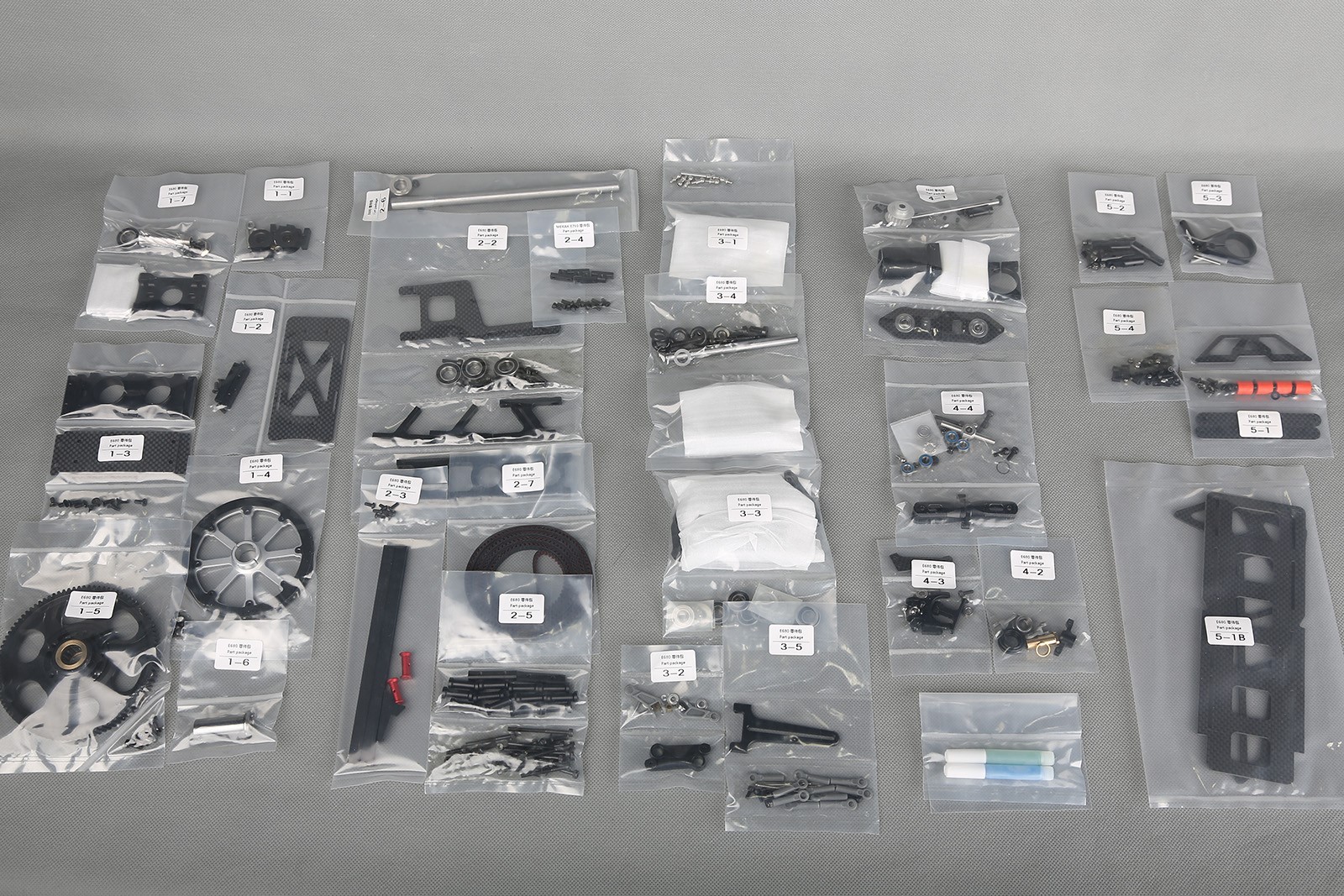

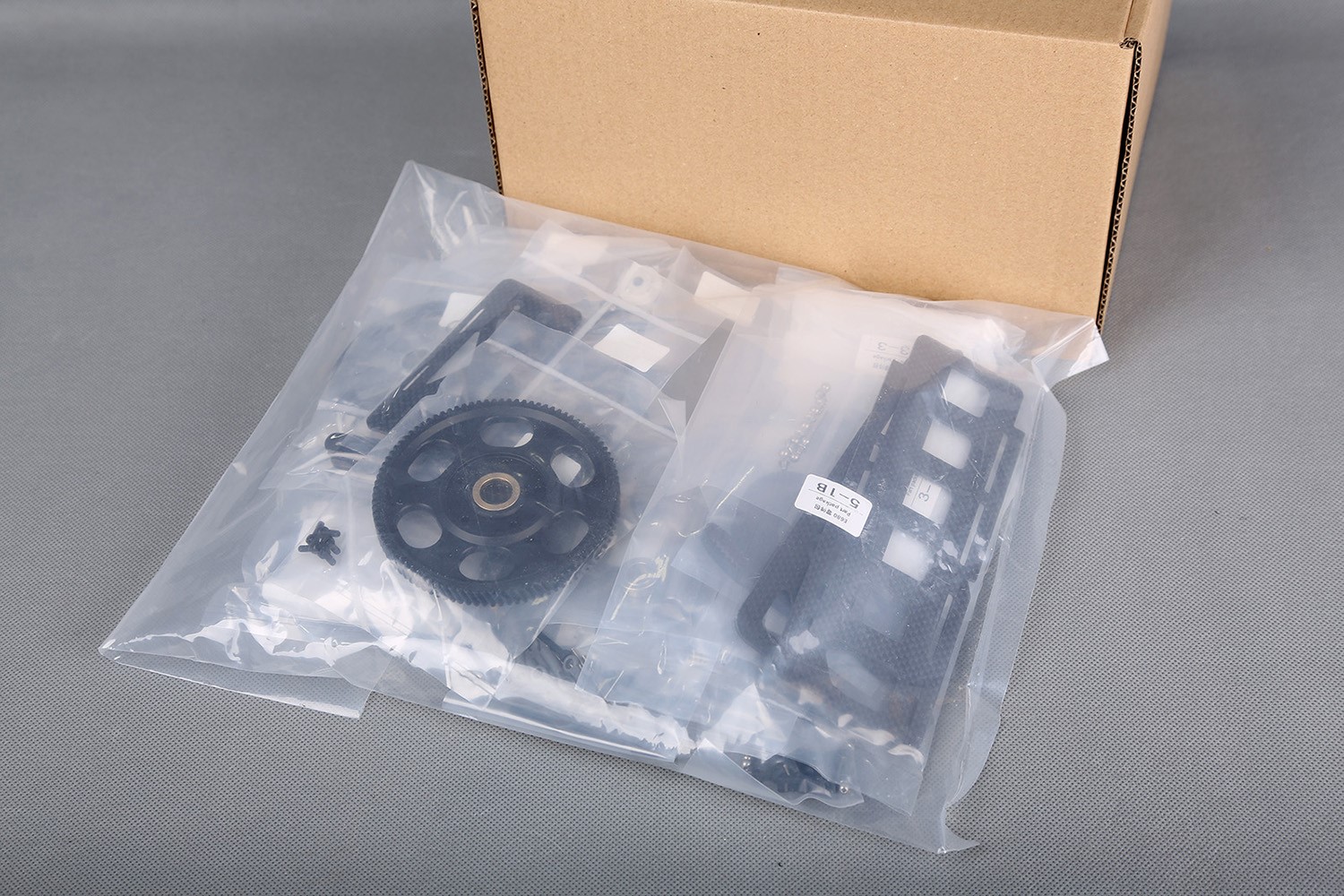

All parts are numbered. Please assemble them in order
![329A4906.JPG PHECDA E680 Assembly precautions(1)(图5)](/ueditor/net/upload/image/20200720/6373088011067767321874517.JPG)
Before installing the machine, you should also prepare the installation tools! It is recommended that you choose the rve screwdriver set.
![329A4910.JPG PHECDA E680 Assembly precautions(1)(图6)](/ueditor/net/upload/image/20200720/6373088011077142329902702.JPG)

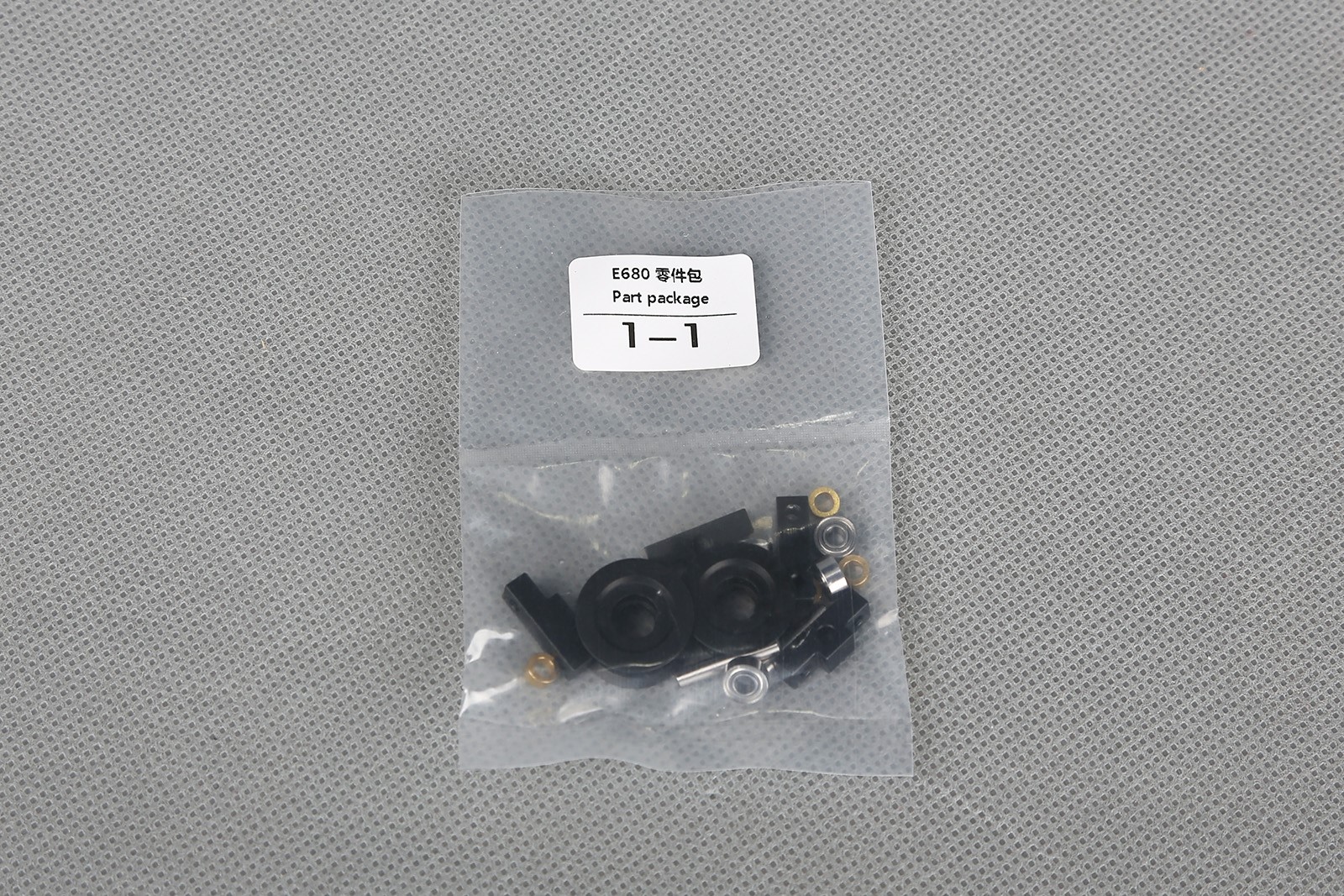

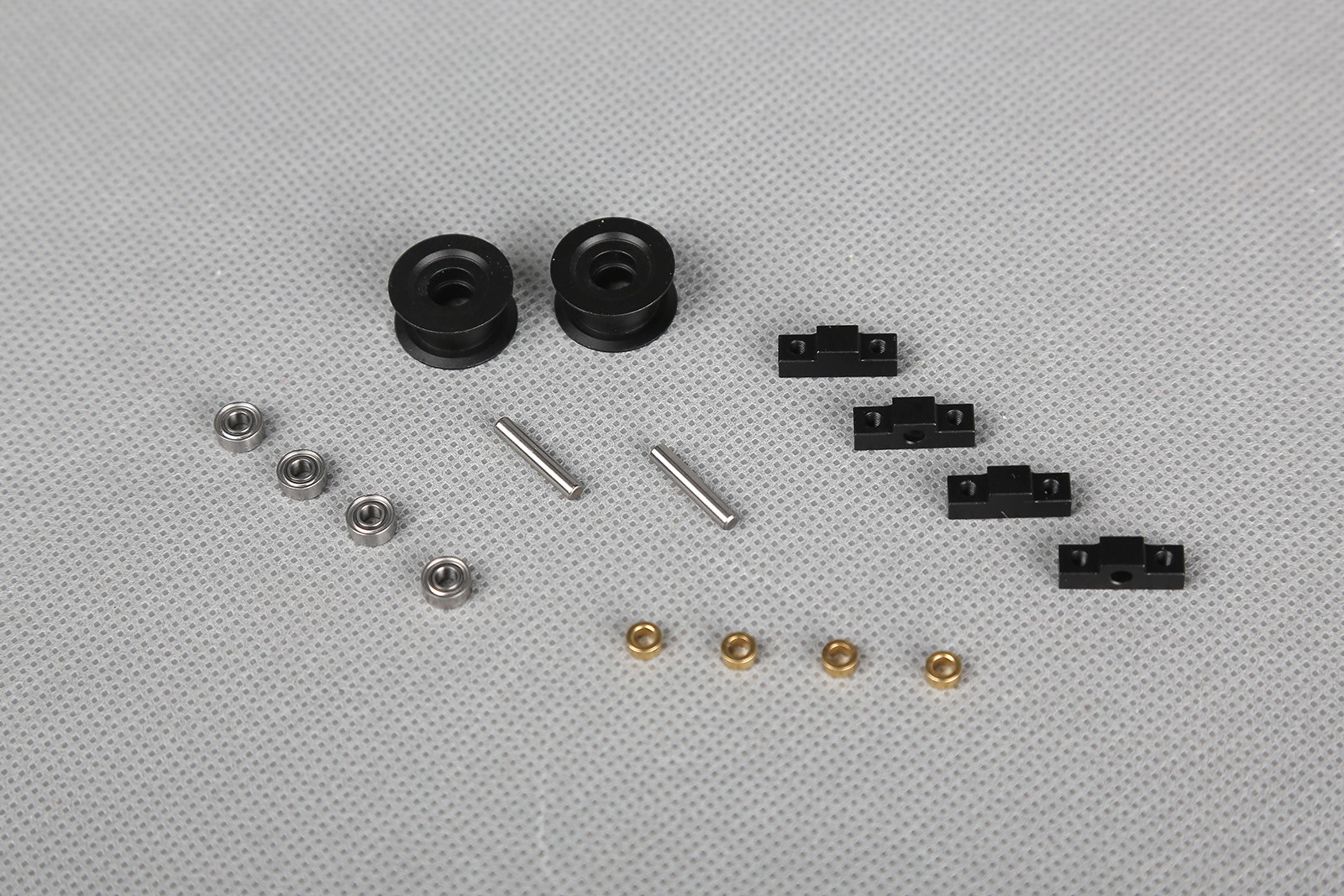

Let's start with 1-1. The parts package is the drive guide wheel.
![329A4907.JPG PHECDA E680 Assembly precautions(1)(图7)](/ueditor/net/upload/image/20200720/6373088016858392325832327.JPG)
![329A4908.JPG PHECDA E680 Assembly precautions(1)(图8)](/ueditor/net/upload/image/20200720/6373088016866204828089756.JPG)
![329A4913.JPG PHECDA E680 Assembly precautions(1)(图9)](/ueditor/net/upload/image/20200720/6373088016872454828874603.JPG)

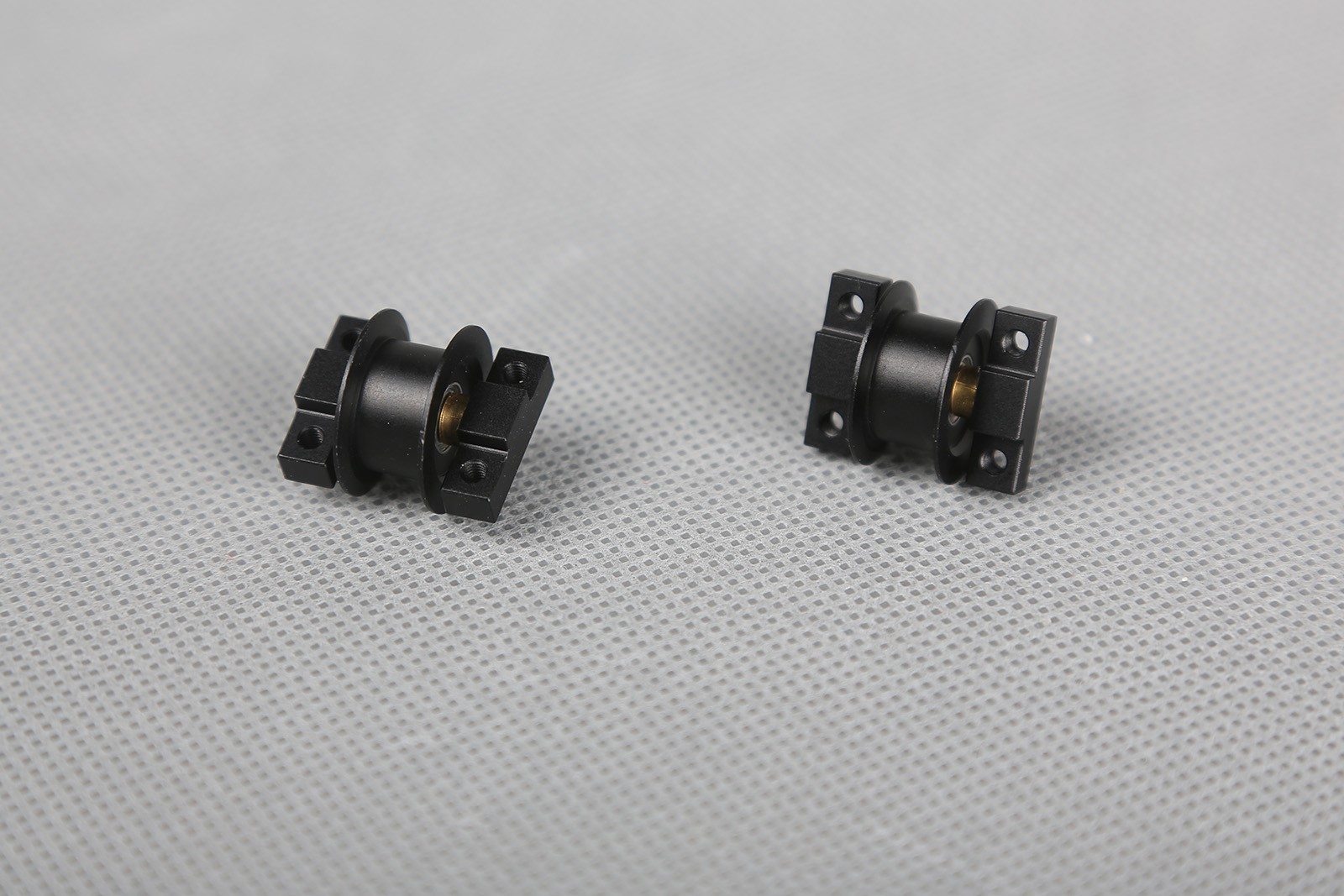

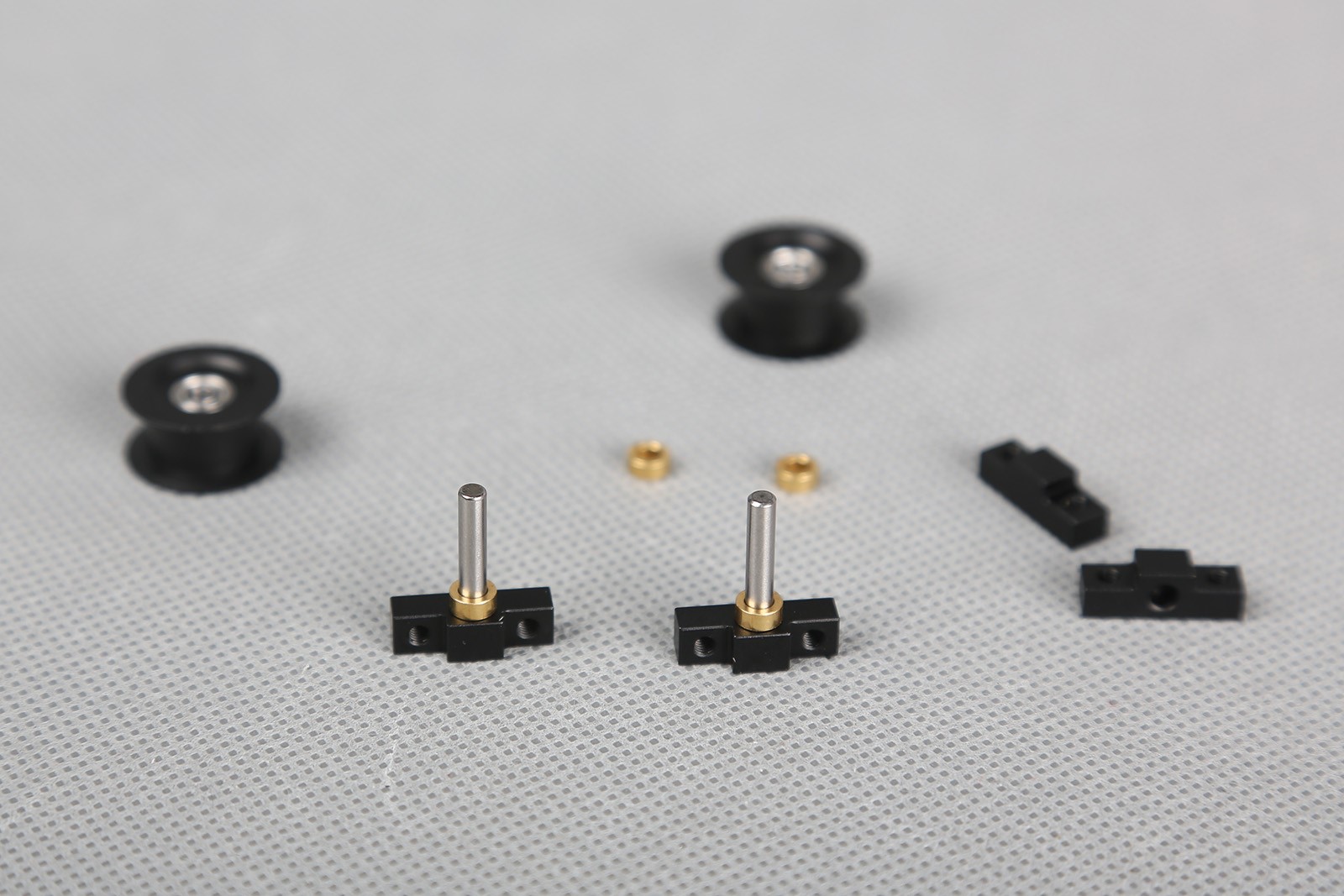

Note: install one copper washer at the top and one at the bottom.
![329A4914.JPG PHECDA E680 Assembly precautions(1)(图10)](/ueditor/net/upload/image/20200720/6373088016880267322132032.JPG)

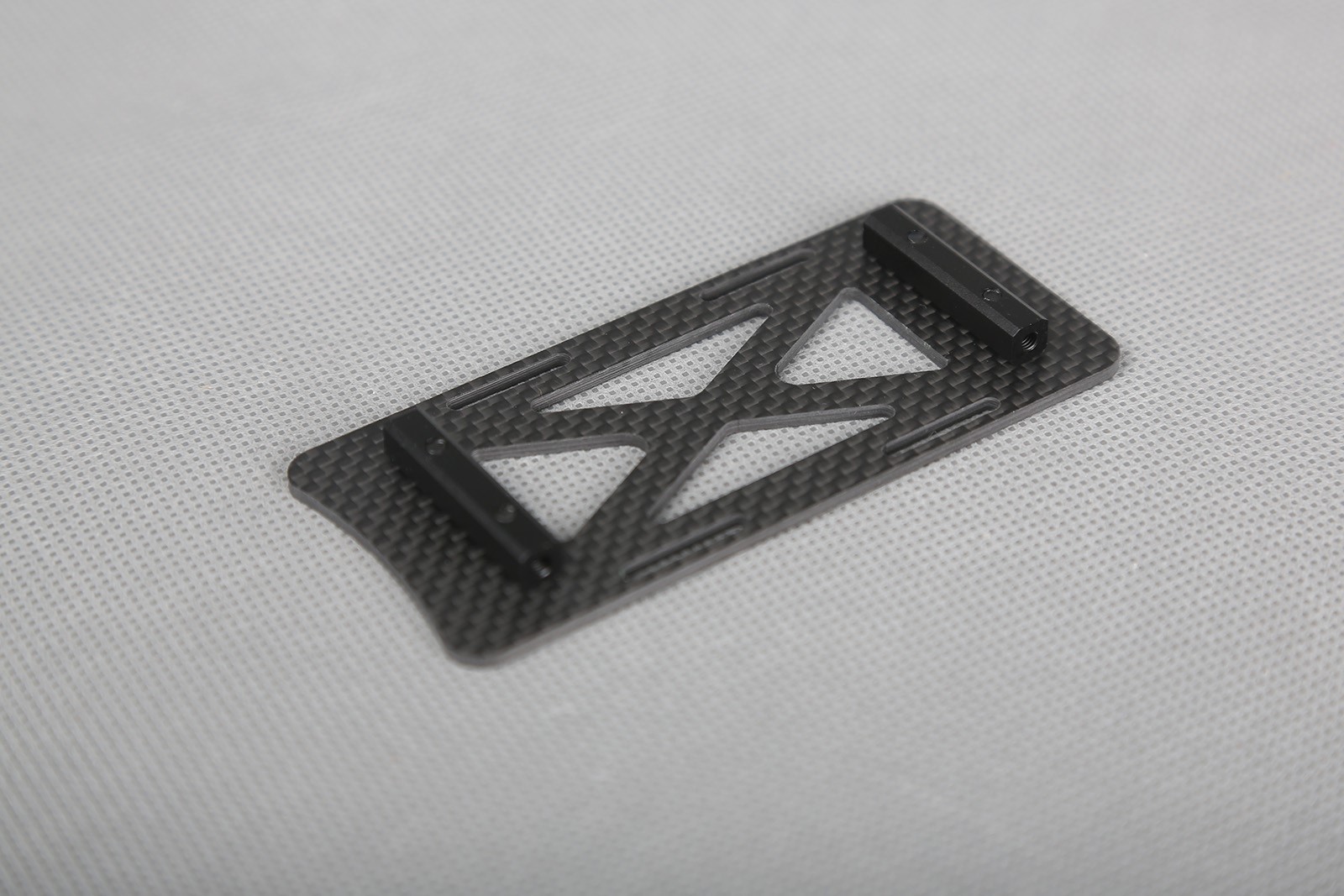

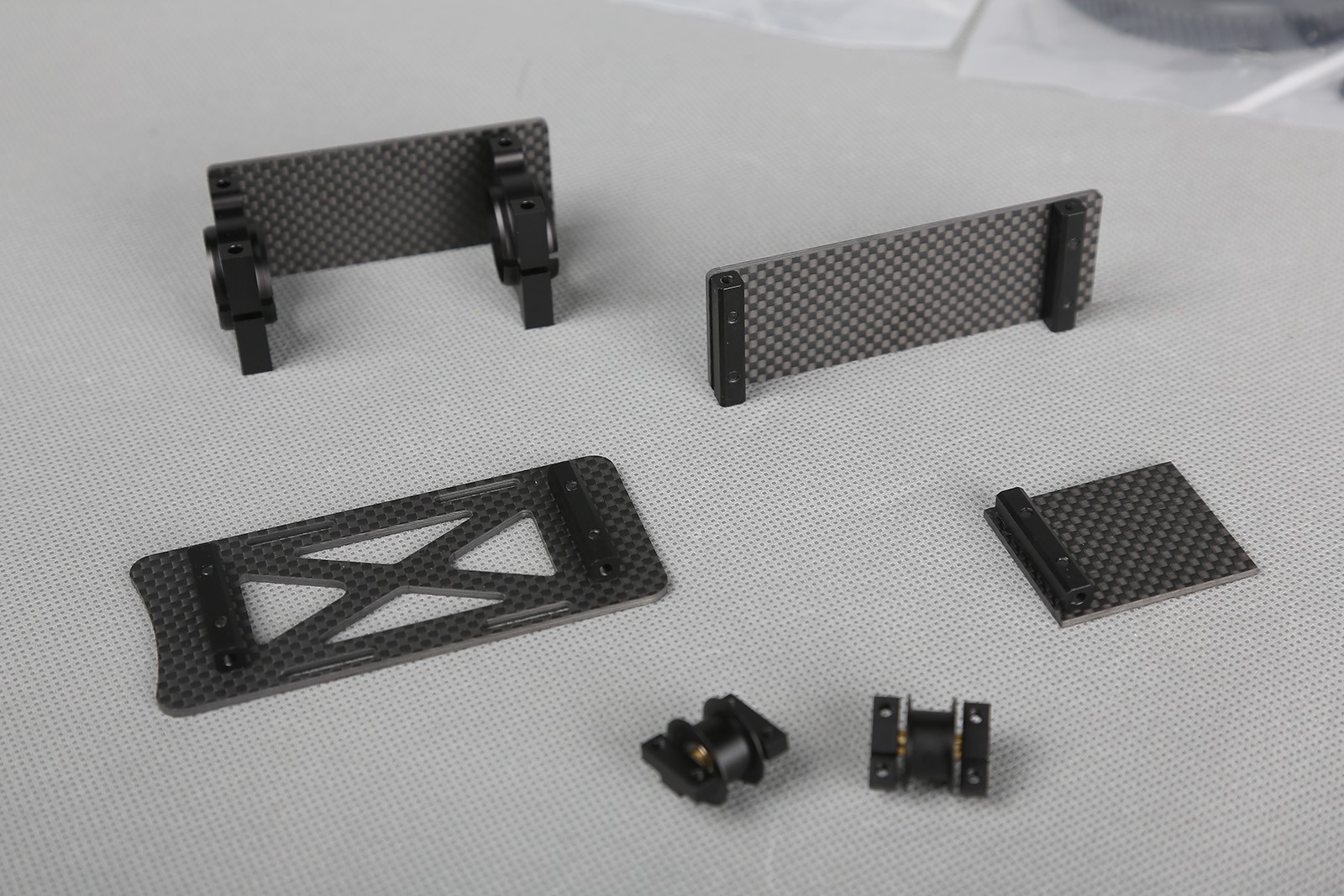

The next step is the assembly of the electric adjustment mounting plate.
![329A4916.JPG PHECDA E680 Assembly precautions(1)(图11)](/ueditor/net/upload/image/20200720/6373088016892767328403554.JPG)
![329A4920.JPG PHECDA E680 Assembly precautions(1)(图12)](/ueditor/net/upload/image/20200720/6373088016916204826175842.JPG)

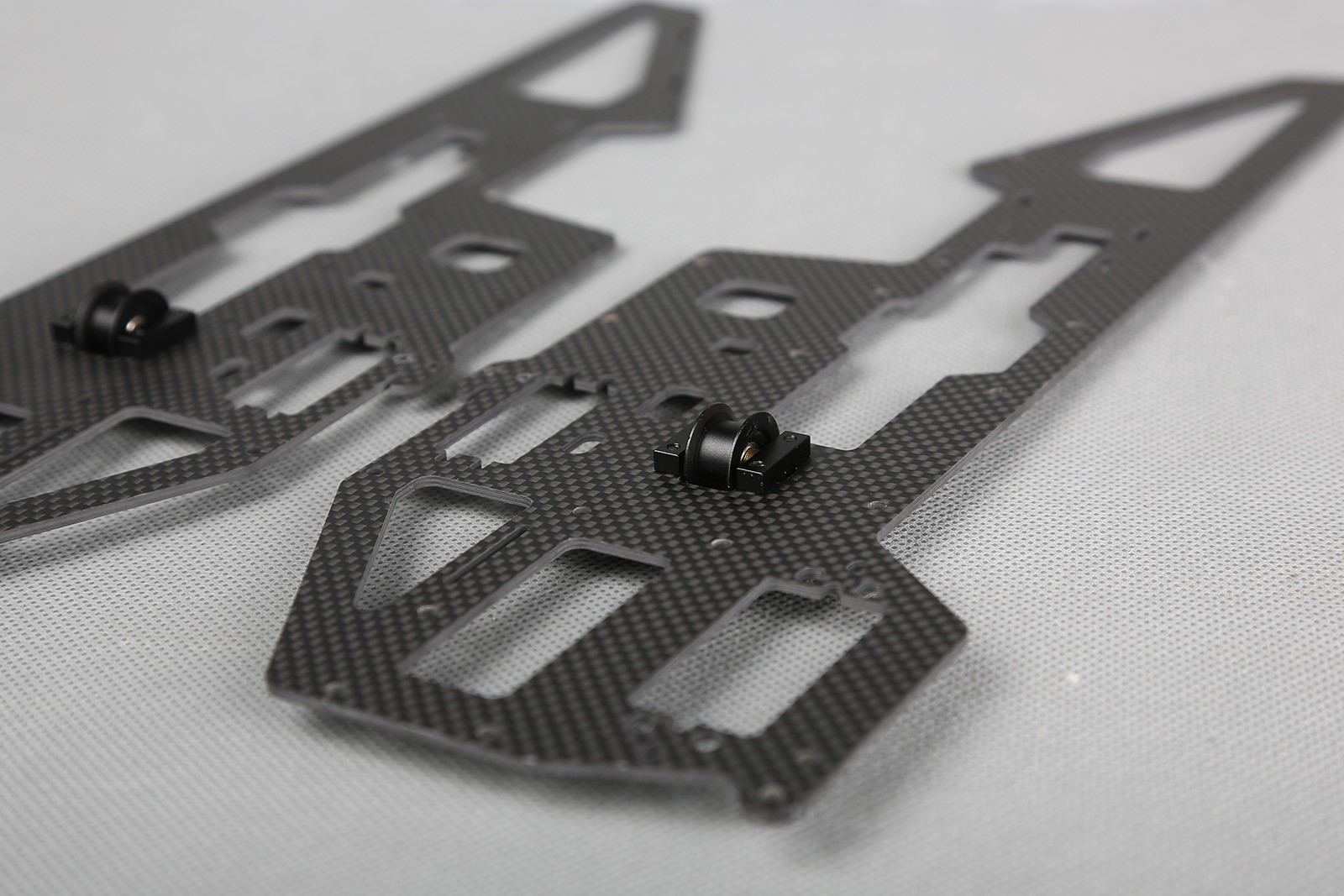

Please note: the left and right side plates are different. Pay attention to the installation direction of the guide wheel group.
![329A4922.JPG PHECDA E680 Assembly precautions(1)(图13)](/ueditor/net/upload/image/20200720/6373088016920892321189934.JPG)
The figure below shows the left side panel.
![329A4923.JPG PHECDA E680 Assembly precautions(1)(图14)](/ueditor/net/upload/image/20200720/6373088016928704823447364.JPG)

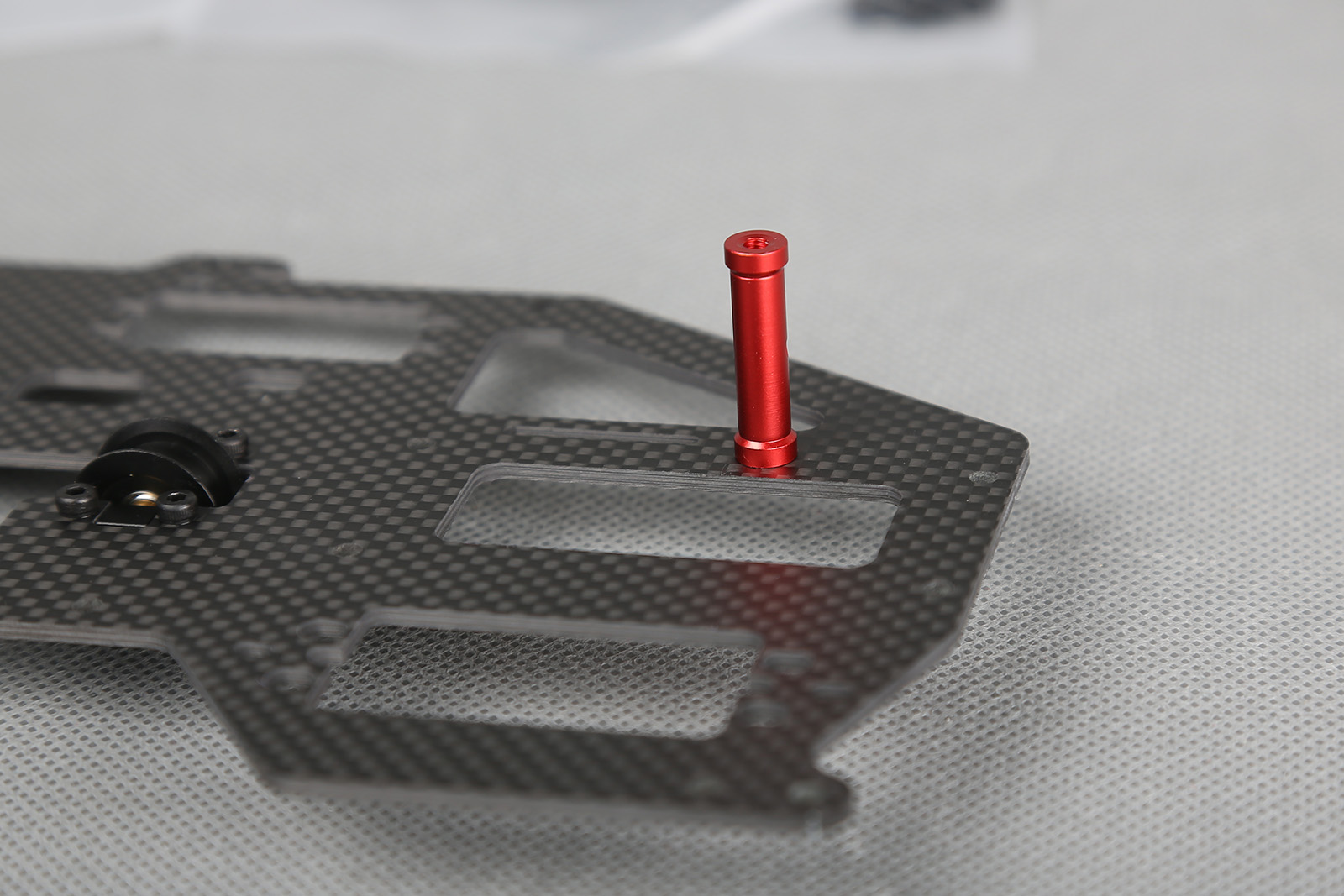

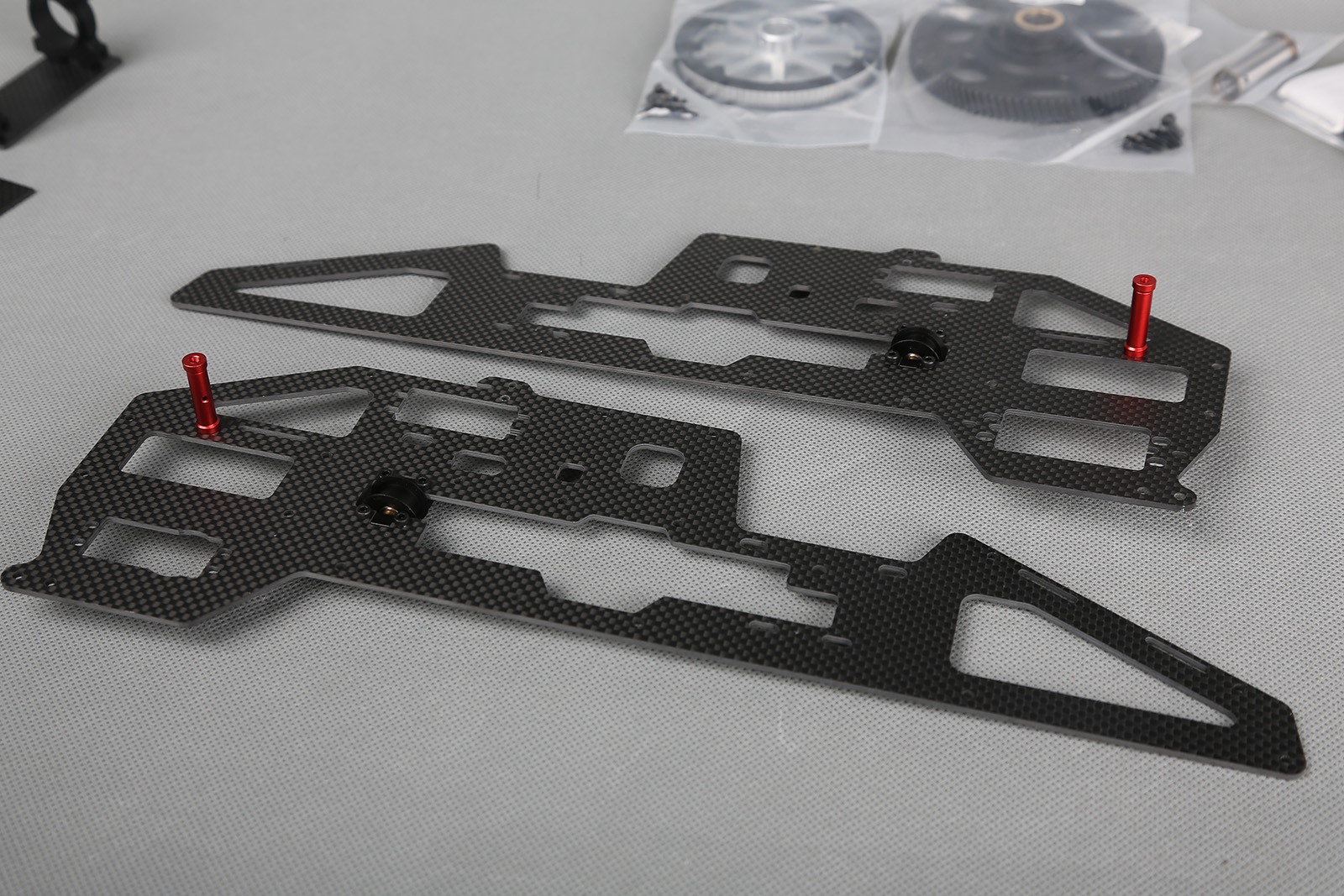

Installation of canopy fixed column, also pay attention to the installation direction is not wrong.
![329A4924.JPG PHECDA E680 Assembly precautions(1)(图15)](/ueditor/net/upload/image/20200720/6373088016936517325704793.JPG)
![329A4925.JPG PHECDA E680 Assembly precautions(1)(图16)](/ueditor/net/upload/image/20200720/6373088016950579828747069.JPG)

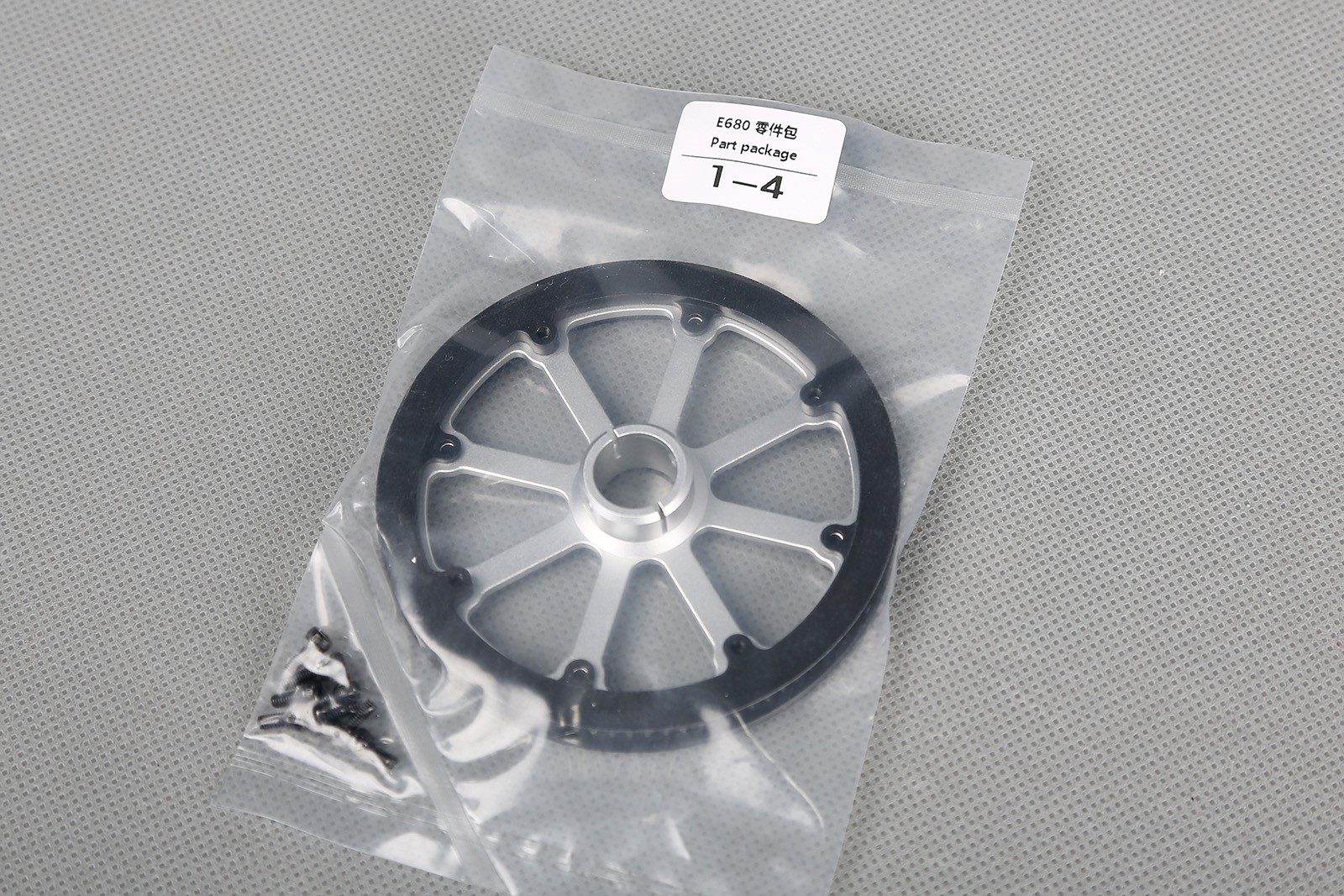

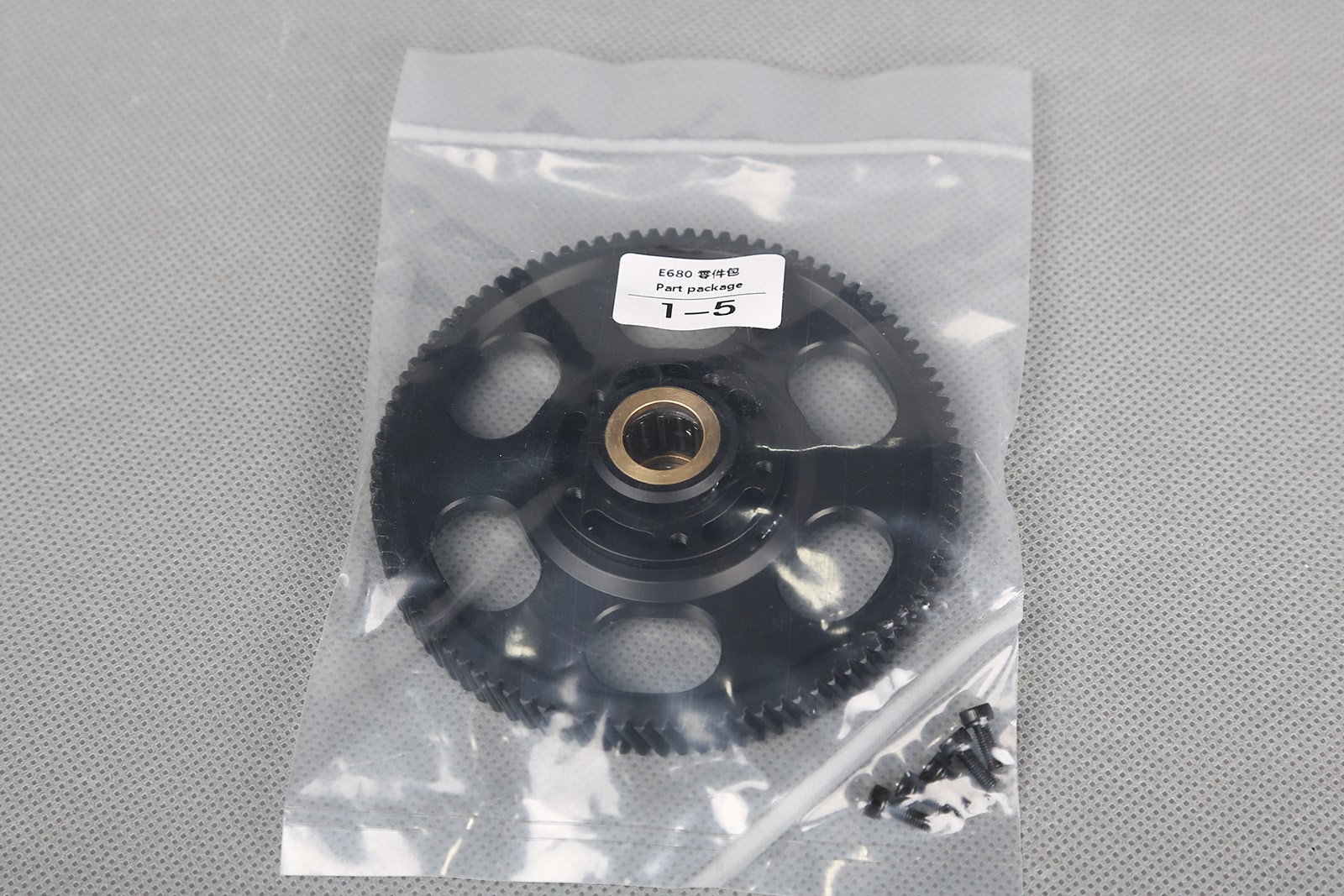

We continue to assemble the tail drive main gear. 1-4 parts package.
![329A4926.JPG PHECDA E680 Assembly precautions(1)(图17)](/ueditor/net/upload/image/20200720/6373088021956829827140531.JPG)

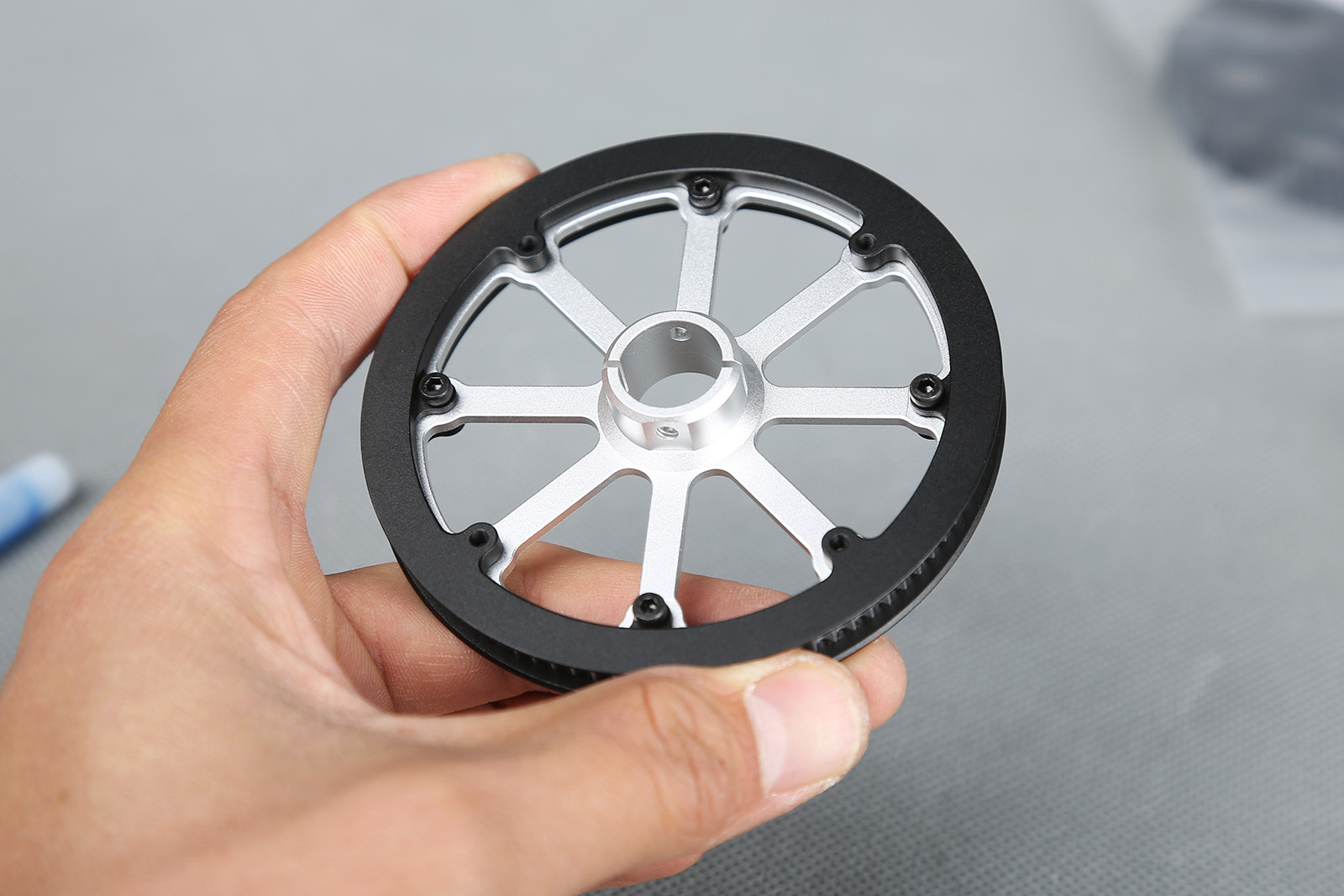

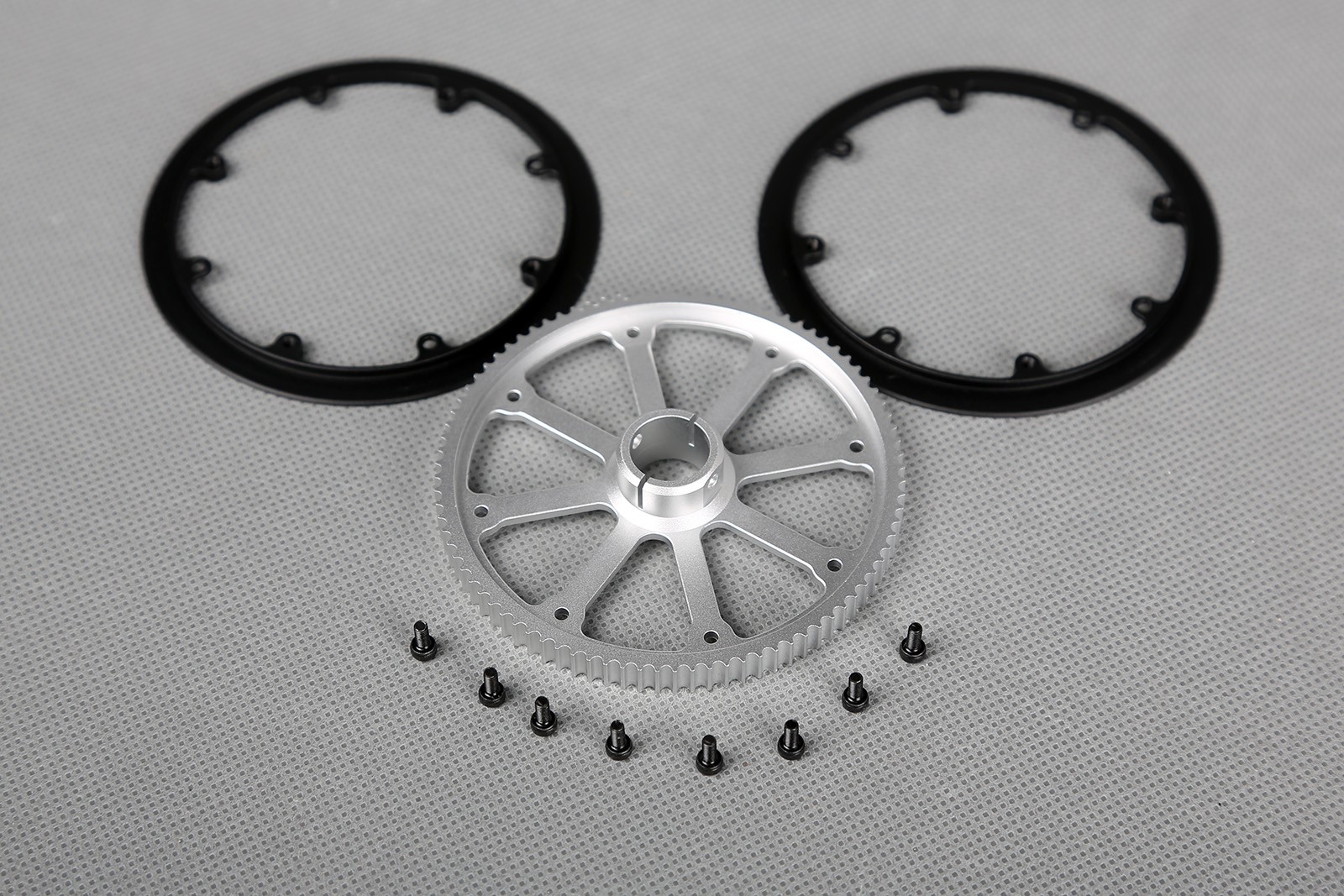

It should be noted here that there are 4 holes and 4 threads on the pulley rib, and the screw needs to be fixed in the threaded hole of the other rib through the hole.
![329A4927.JPG PHECDA E680 Assembly precautions(1)(图18)](/ueditor/net/upload/image/20200720/6373088021969329824412053.JPG)
Also note that the screws need to be evenly tightened several times.
![329A4928.JPG PHECDA E680 Assembly precautions(1)(图19)](/ueditor/net/upload/image/20200720/6373088021970892325884635.JPG)
![329A4930.JPG PHECDA E680 Assembly precautions(1)(图20)](/ueditor/net/upload/image/20200720/6373088021983392323156157.JPG)
![329A4931.JPG PHECDA E680 Assembly precautions(1)(图21)](/ueditor/net/upload/image/20200720/6373088021995892329427678.JPG)
![329A4932.JPG PHECDA E680 Assembly precautions(1)(图22)](/ueditor/net/upload/image/20200720/6373088022002142321212525.JPG)

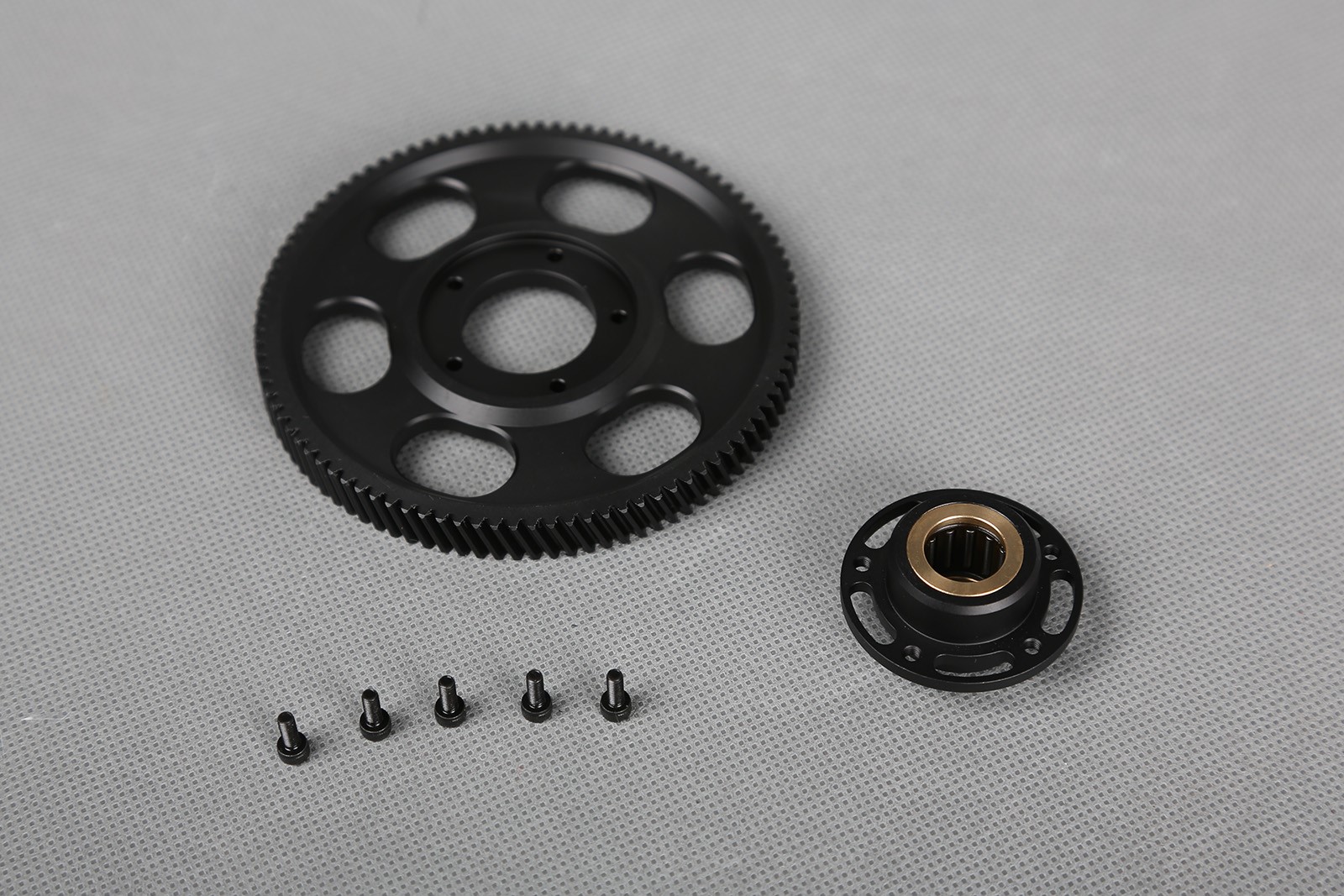

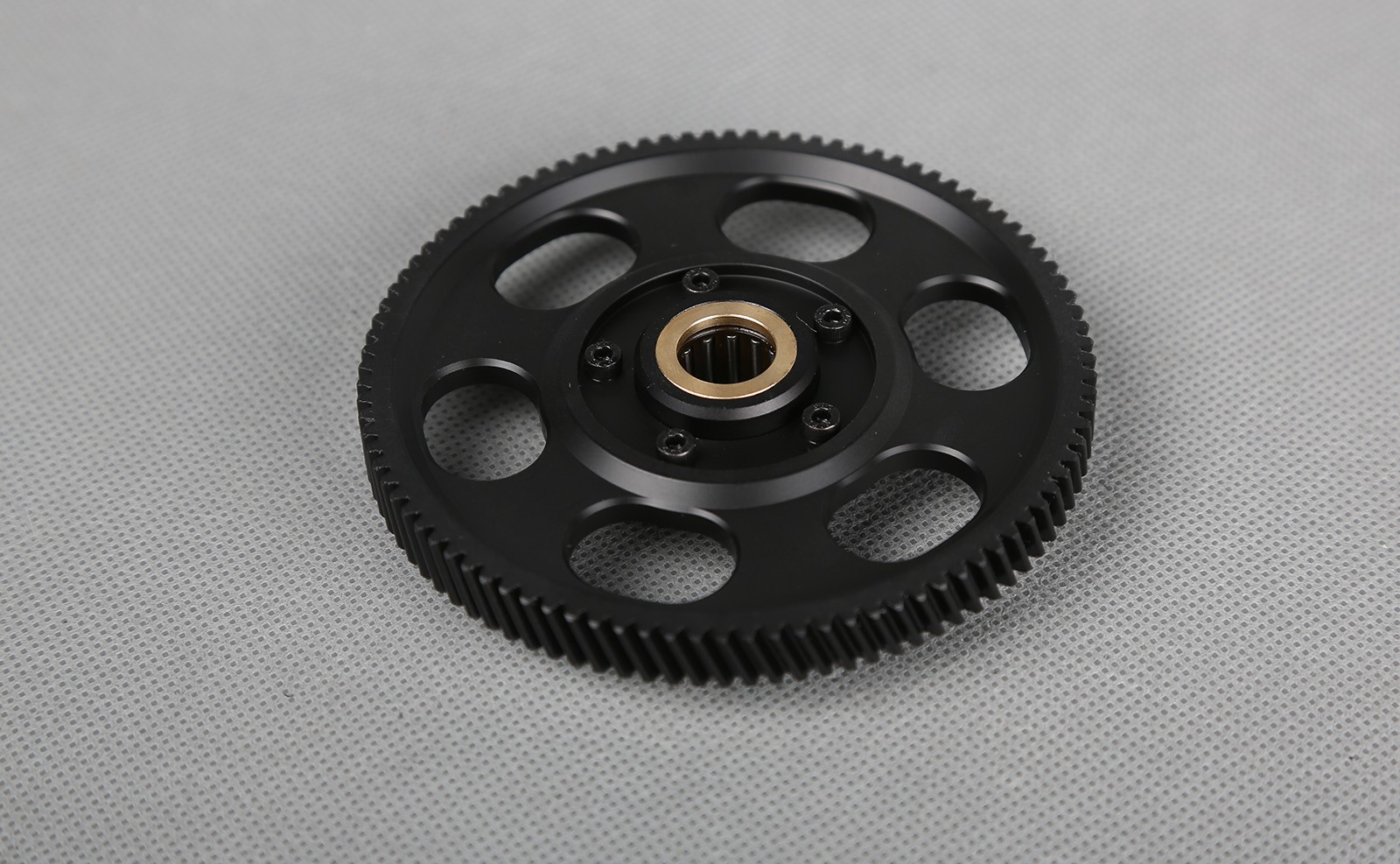

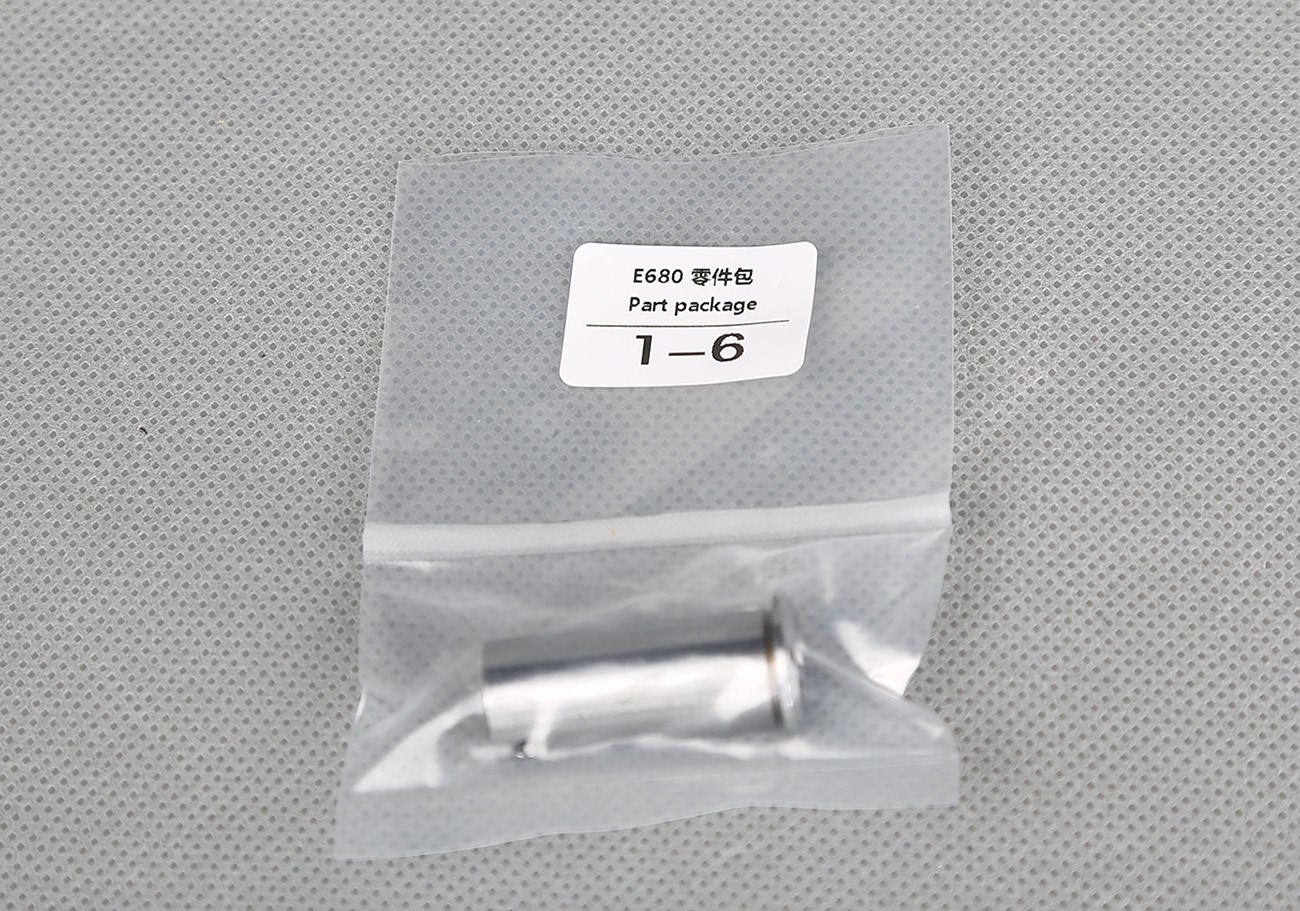

Single bearing inner sleeve.
![329A4933.JPG PHECDA E680 Assembly precautions(1)(图23)](/ueditor/net/upload/image/20200720/6373088022014642327484047.JPG)

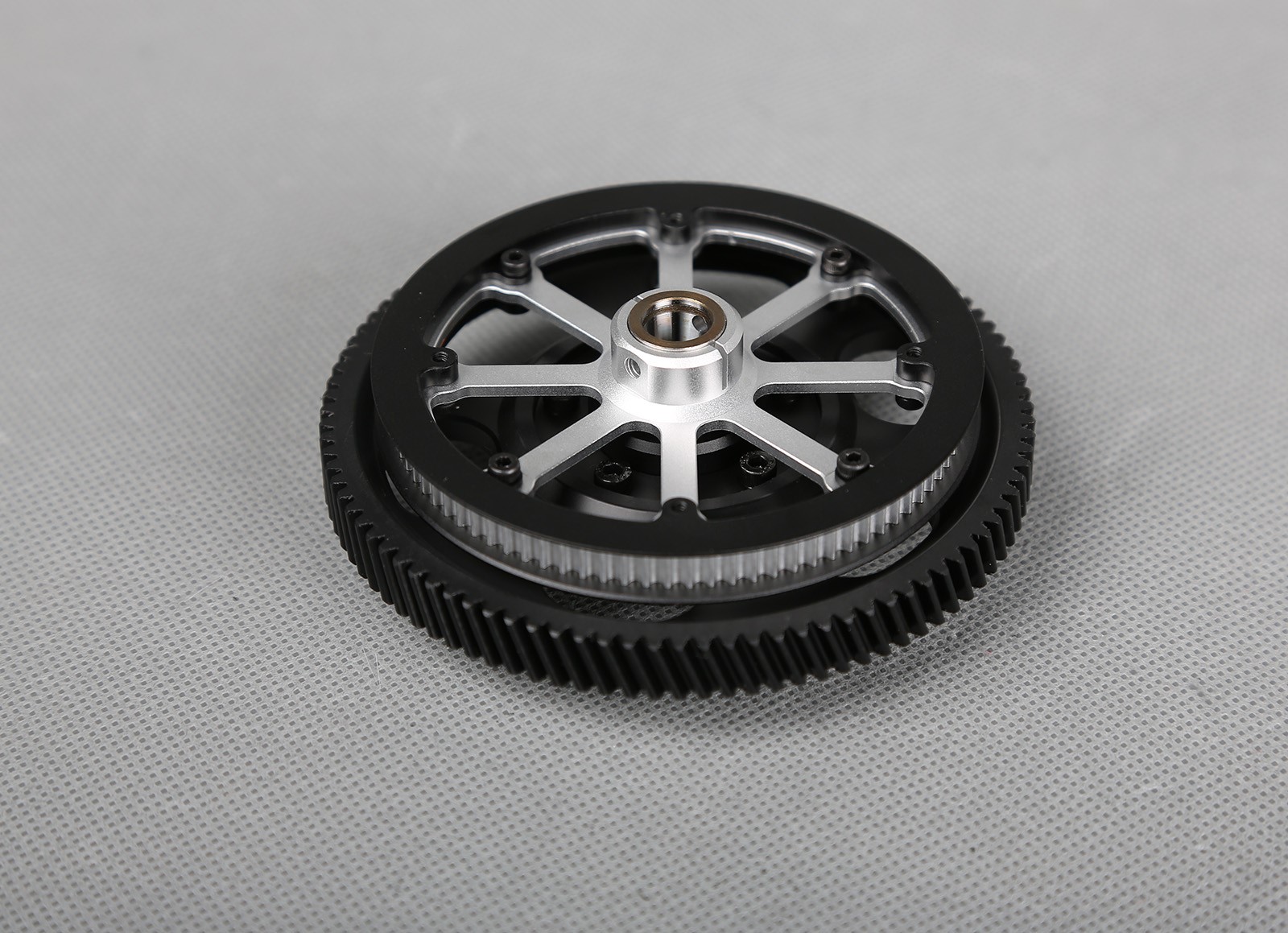

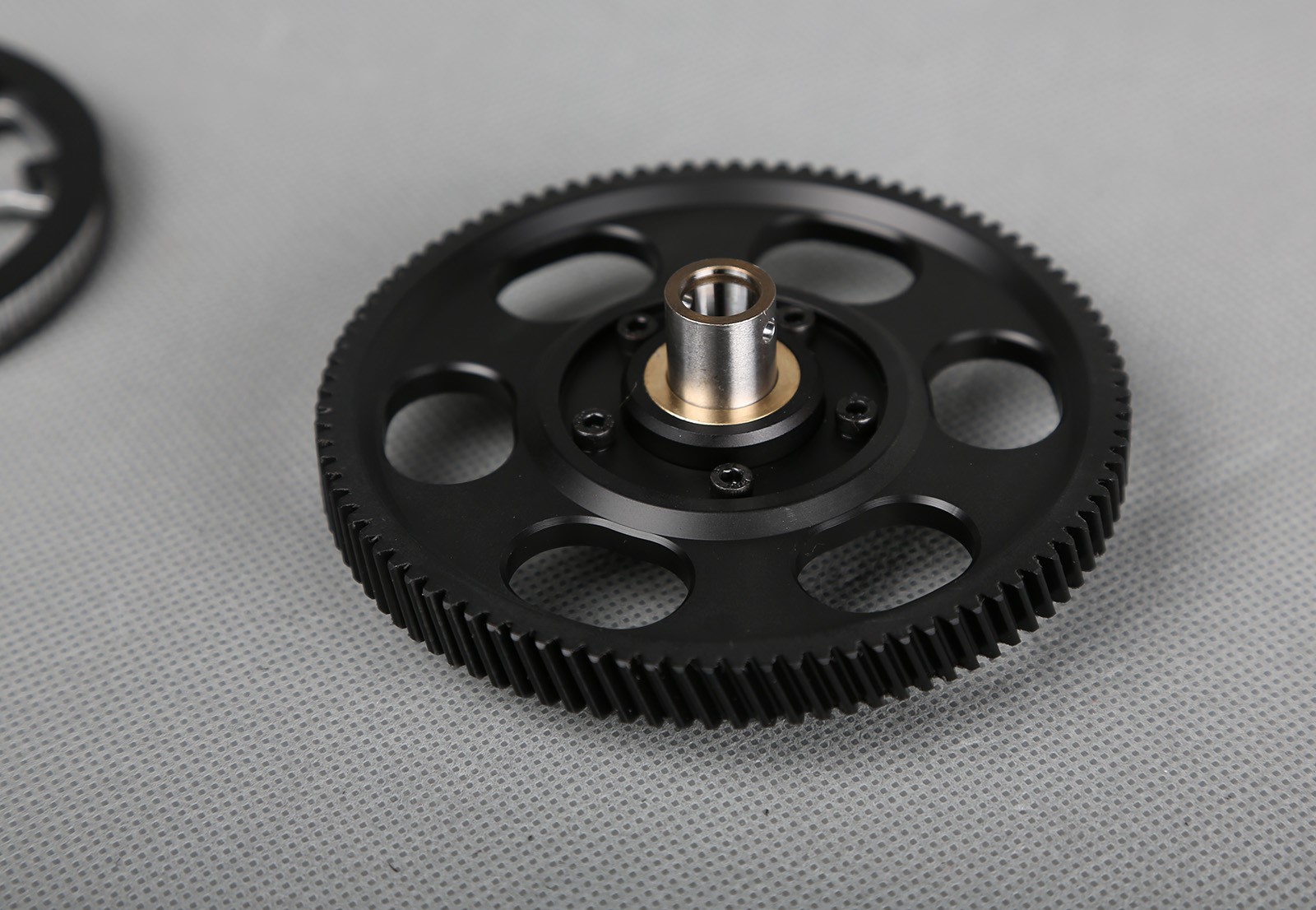

Pay attention to the anti rust oil in the inner sleeve, which can be cleaned first and then penetrate upward from the bottom of the main gear. Then install the tail drive main gear.
