MERAK F3C Rotor head MK75099
2021-06-24   ViewCount :

MERAK F3C ROTOR HEAD


This rotor head is made of all 7075-T6 aviation aluminum CNC.
Suitable for 12 mm spindle, suitable for 700-800heli refit!


Product characteristics:
Rotor head height is low, increasing response speed and flexibility.
The control of the rocker arm adopts a larger sweep angle to ensure consistency of pitch.
The phase rocker bearing increases, reduces the control of the virtual position and increases the service life.
The pitch control rod adopts titanium alloy positive and negative tooth pull rod, which can precisely adjust pitch.
The horizontal shaft adopts 10MM hollow steel shaft, with high strength and light weight.

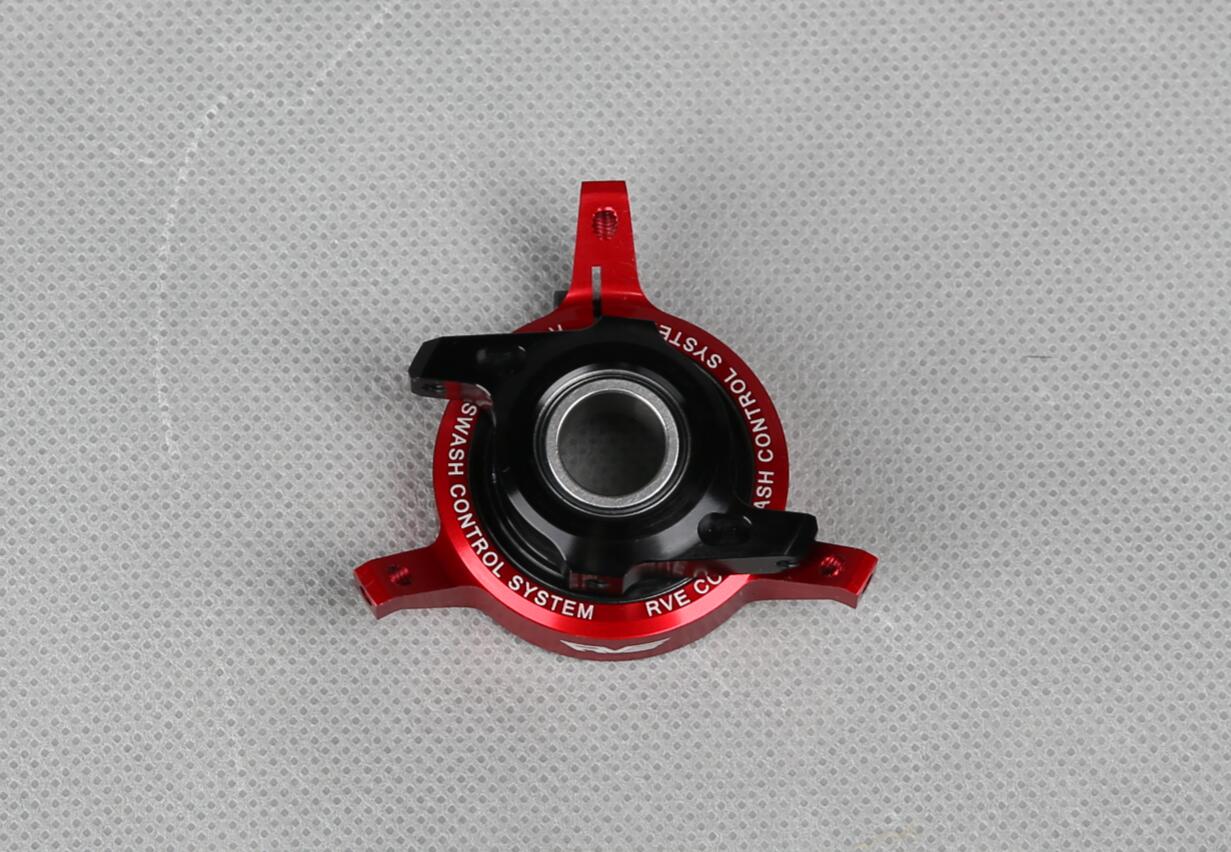

The inclined plate is made of thin wall bearing, with a fine adjusting locking structure, which controls the virtual position is very small.

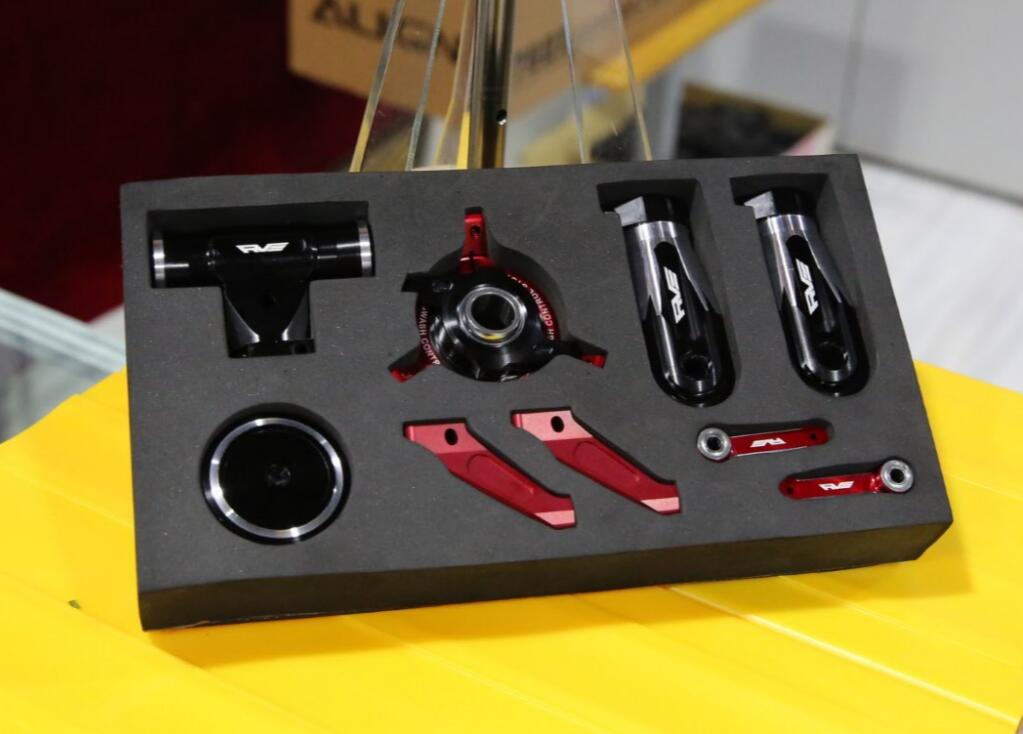

The product includes:

SWASH PLATE ASSEMBLY *1

FBL WASHOUT ARM ASSEMB *2

CENTER HU *1

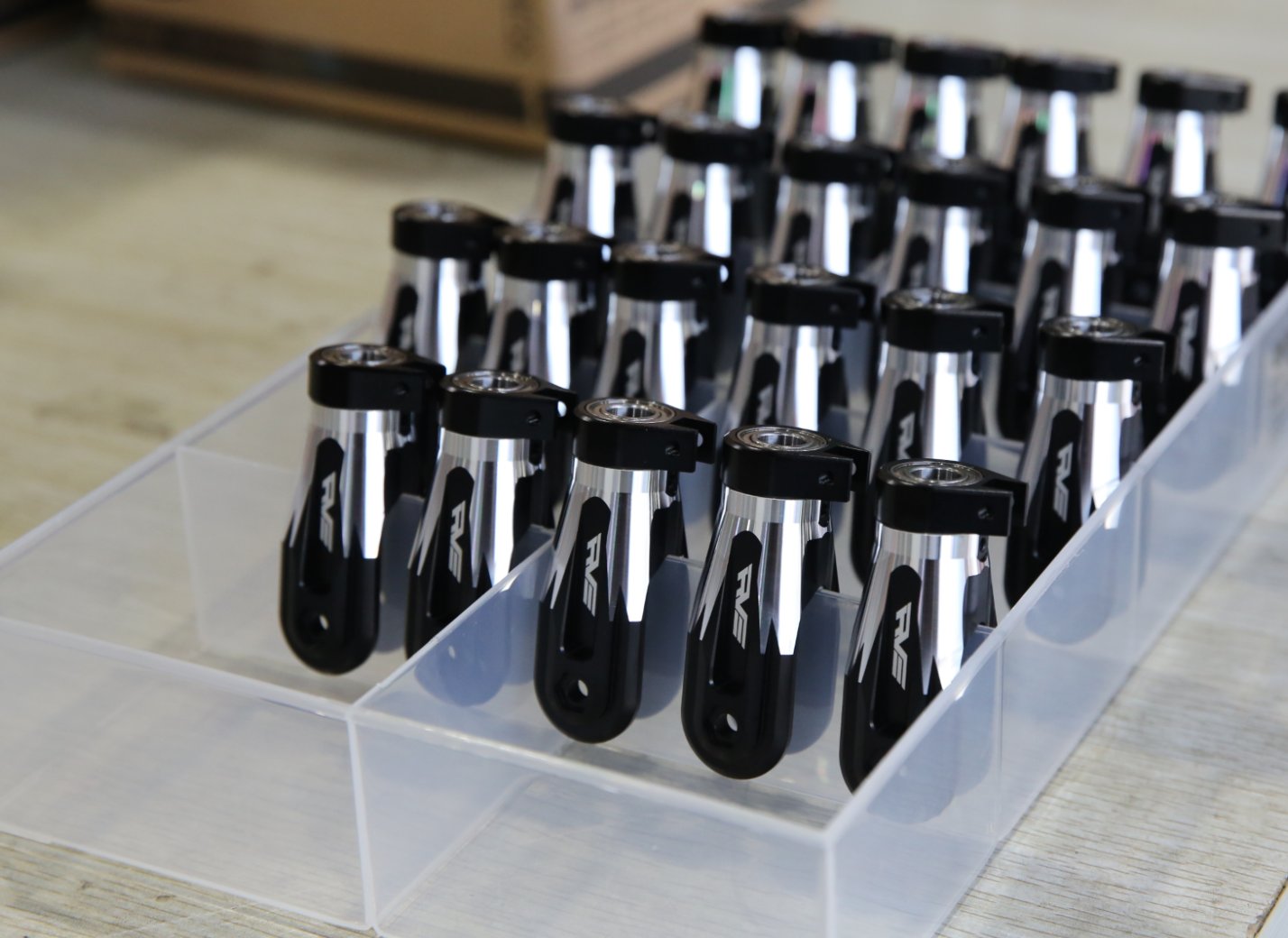

MAIN BLADE HOLDER ASSEMBLY *2

HEAD BUTTO *1

 SPINDLE SHAF *1

FBL PITCH ARM  *2

ROTOR SPACER AL *4

HG MAIN BLADE BOLT SET M5 *2

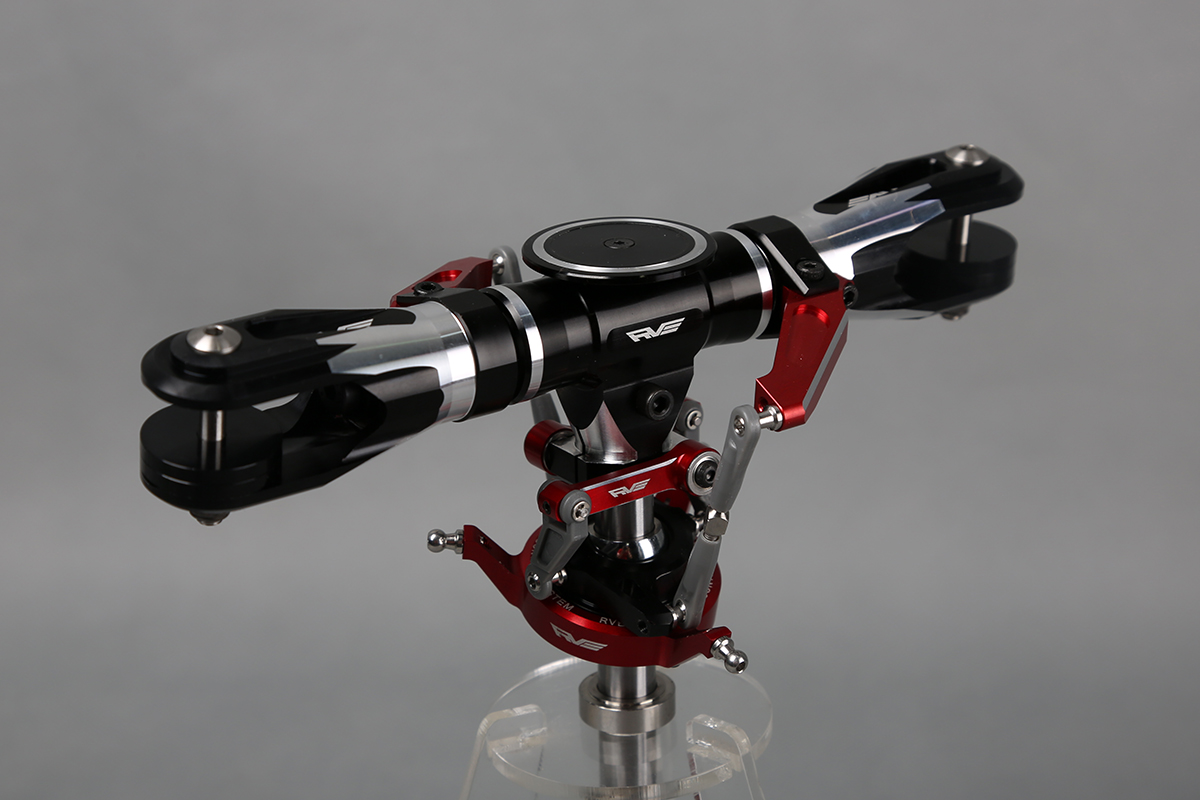

MERAK F3C Rotor head!(图4)

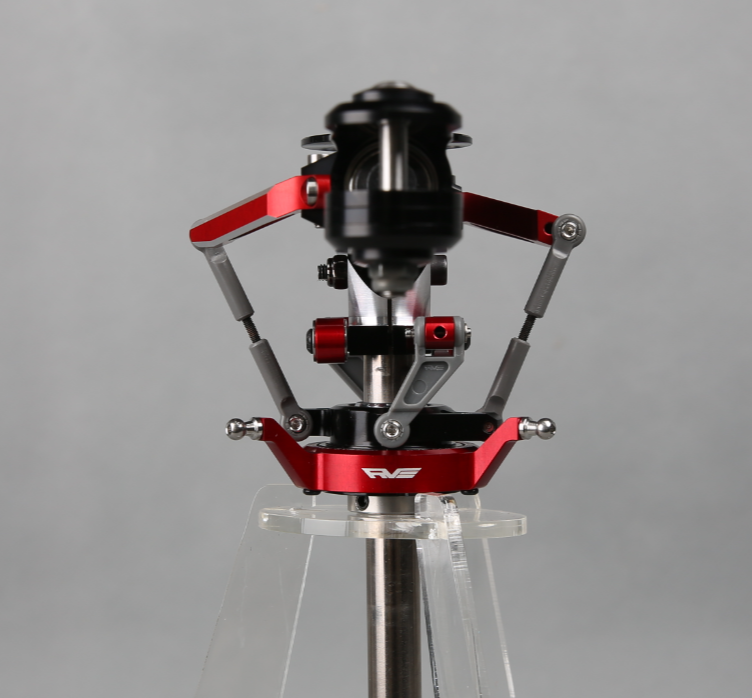

MERAK F3C Rotor head!(图5)
