RVE Phecda E680 KIT MK68000
2021-06-24
ViewCount :

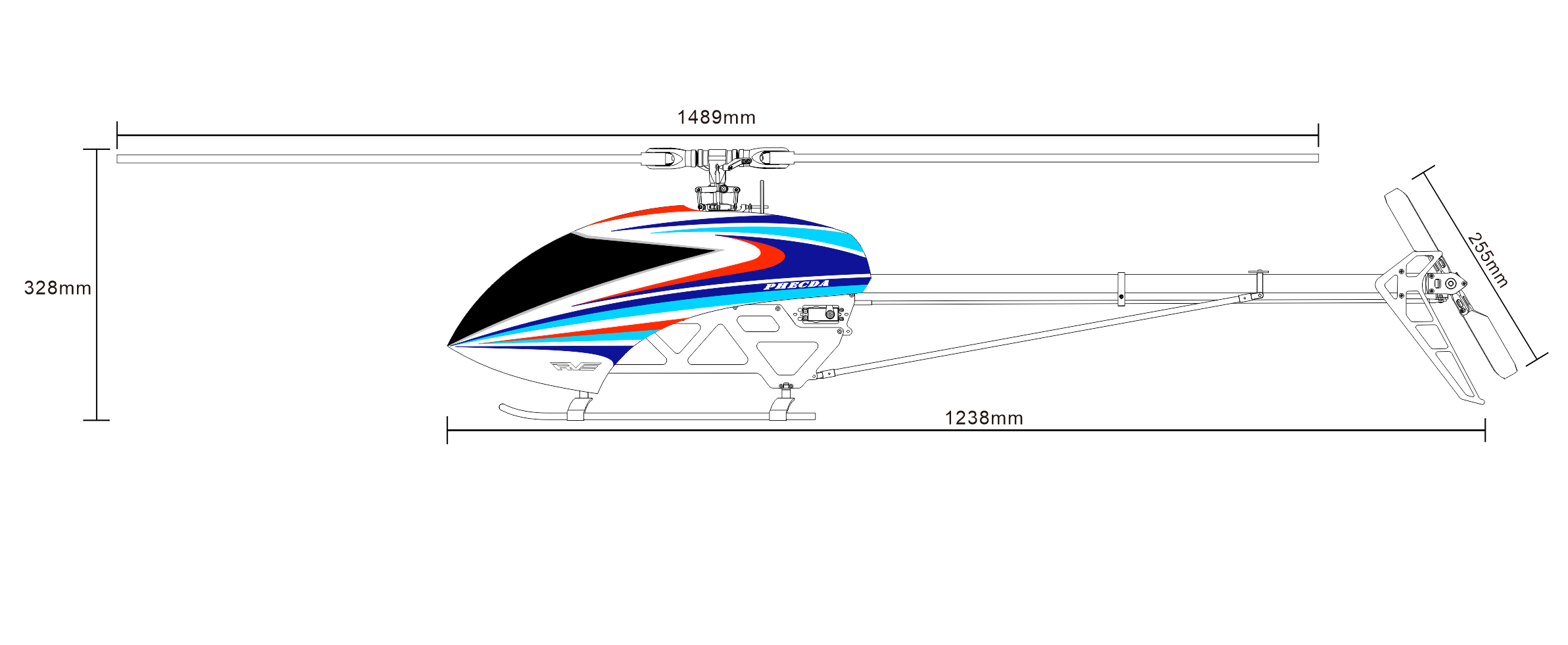

Length: 1238mm (excluding blade and tail blade)
Height: 328mm
Width: 176mm
Blade diameter: about 1489mm (based on 670mm rotor)
Blade length (single): 670mm (range: 600-680mm)
Tail blade diameter: About 255mm (based on 92mm tail blade)
Tail blade length (single): 92mm (range 90-95mm)
Gear ratio: 8.72/1/4.89 with 11T motor teeth (optional with 10t / 12t / 13T motor teeth)
Takeoff weight (6s-5300ma battery): about 3520g
Motor specification: 4030-6mm shaft diameter (range 4025 / 4030 / 4035 / 4225 / 4525 / 4526)
Motor kV: 900-1100kv 6mm shaft diameter (6S)
450-540KV(12S)
Electric regulation specification: 120a + (6S)
100A+(12S)
Battery Specification: 4200-6000mah (6S)
2600-4200mah(12S)
Phecda kit does not include main rotor blade and tail rotor blade.
![329A5098.JPG RVE Phecda E680 KIT!(图1)](/ueditor/net/upload/image/20200518/6372544277683694188533756.JPG)
![329A4923.JPG RVE Phecda E680 KIT!(图2)](/ueditor/net/upload/image/20200518/6372544277614944183391301.JPG)
![329A4989.JPG RVE Phecda E680 KIT!(图3)](/ueditor/net/upload/image/20200518/6372544277639944186934345.JPG)
![329A5034.JPG RVE Phecda E680 KIT!(图4)](/ueditor/net/upload/image/20200518/6372544277649319185962529.JPG)
![329A5049.JPG RVE Phecda E680 KIT!(图5)](/ueditor/net/upload/image/20200518/6372544277650881682733284.JPG)
![329A5047.JPG RVE Phecda E680 KIT!(图6)](/ueditor/net/upload/image/20200518/6372544277655569186747376.JPG)
![329A5054.JPG RVE Phecda E680 KIT!(图7)](/ueditor/net/upload/image/20200518/6372544277671194182262235.JPG)
![329A5083.JPG RVE Phecda E680 KIT!(图8)](/ueditor/net/upload/image/20200518/6372544277669631685491480.JPG)
![329A5099.JPG RVE Phecda E680 KIT!(图9)](/ueditor/net/upload/image/20200518/6372544277680569181290419.JPG)
![329A4899.JPG RVE Phecda E680 KIT!(图10)](/ueditor/net/upload/image/20200518/6372544279324319189346415.JPG)
![QQ截图20200513231847.png QQ截图20200513231847.png](/ueditor/net/upload/image/20200513/6372501085296194189457721.png)
